Vendor: StarFive Category: Coherency

Interconnect fabric IP with cache coherence support

StarNoC-500 is the vendor's first self-developed interconnect fabric IP with cache coherence support, supporting the construction…

Contact Provider Request Datasheet

Overview

StarNoC-500 is the vendor's first self-developed interconnect fabric IP with cache coherence support, supporting the construction of multi-cores and SoC.

Key features

Providing NoC with cache coherence:

  • connecting multiple CPU clusters, IO devices, and DDR, and maintaining cache coherence within the SoC.

High Performance

  • Provides Last Level Cache (LLC), offers Snoop Filter, improves the efficiency of coherence maintenance modules, and memory hierarchy performance.

Efficient Data Exchange

  • Supports CPU and IO device sharing of LLC, simplifying CPU and IO data exchange and improving performance.

Low Power Consumption

  • Supports LLC way shutdown, cache retention, and other low-power technologies.

High Reliability

  • Snoop Filter and LLC support SEC-DED (Single Error Correction Double Error Detection).

Control Interface Support (CFG & MMIO):

  • CPU configuration of IO devices and on-chip SRAM reading; IO device access and configuration of on-chip interconnect coherence.

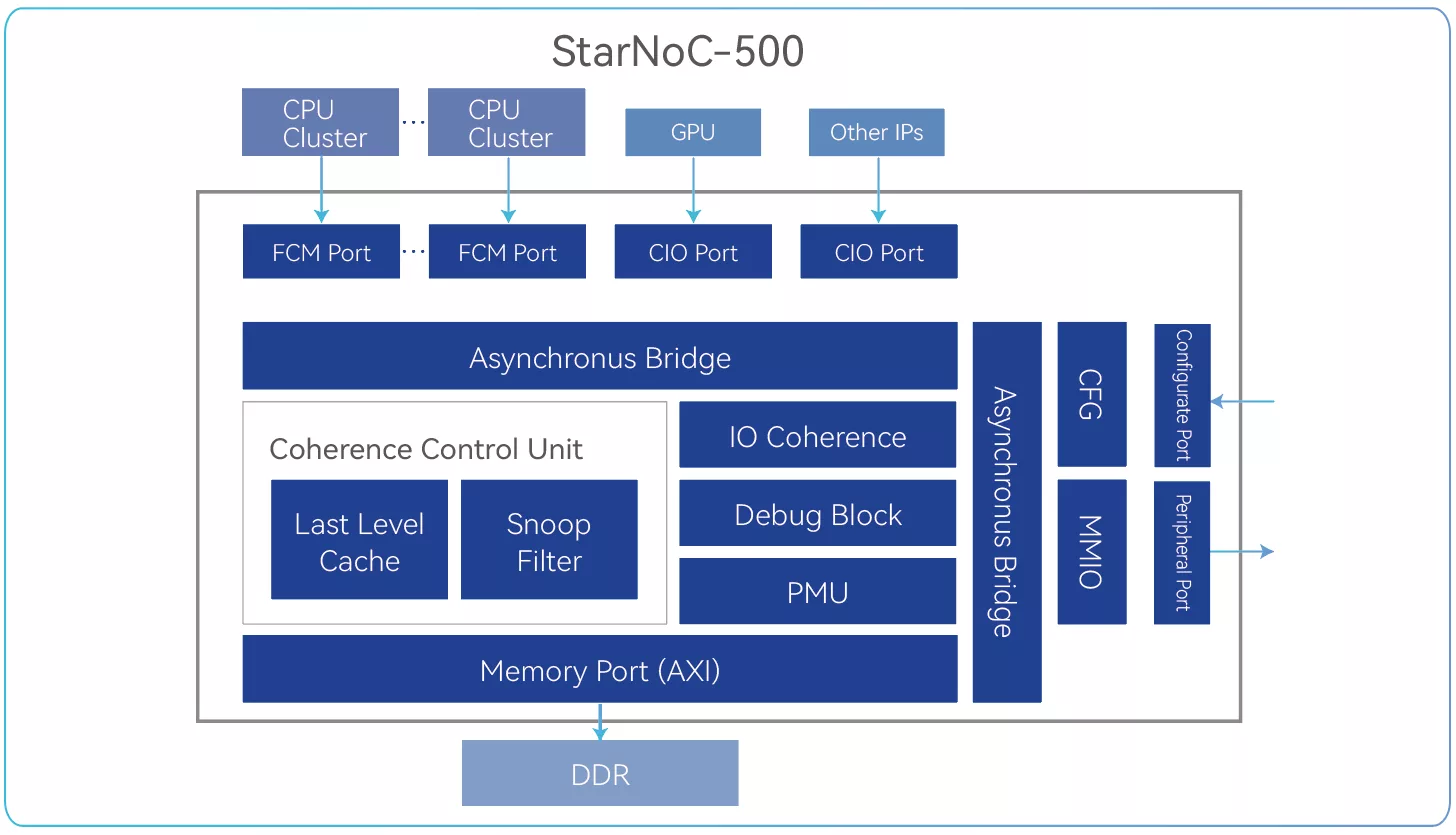

Block Diagram

StarNoC-500 block diagram

Benefits

  • Support multiple Fully Coherent Master (FCM)ports
  • Support multiple CPU core/cluster configuration
  • Support Component Aggregation Layer (CAL)
  • Support multiple Coherent IO (CIO) ports
  • Frequency: 1.2 Ghz@12nm (Reference)
  • Cache Size: Typical 4 MB (Configurable)
  • Bus Width: 256 Bit (Configurable)
  • High bandwidth, low power consumption, low latency

Specifications

Identity

Part Number
StarNoC-500
Vendor
StarFive
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

StarFive
HQ: China
Contact StarFive
