I2S/TDM Serial Audio Interface with Asynchronous Sample Rate Conversion

The IPB-I2S-TDM-ASRC combines an I2S/TDM configurable serial audio interface with two embedded stereo Asynchronous Sample Rate Co…

Contact Provider Request Datasheet

Overview

The IPB-I2S-TDM-ASRC combines an I2S/TDM configurable serial audio interface with two embedded stereo Asynchronous Sample Rate Converters (ASRCs). The ASRCs can provide very high quality in terms of harmonic distortion and noise, tolerance and rejection of input jitter. When sample rate conversion is not necessary, the ASRCs can be bypassed.

The I2S/TDM supports the well-known stereo formats: I2S, Left-Justified or Right-Justified and many configurable TDM formats up to 256 channels. The backend interface is supplied with a choice of AMBA-AHB, AMBA-APB or a parallel interface.

Key features

Specifications

for the ASRCs

  • 2-channel audio sample rate converter
  • Sample size: up to 24 bits
  • Lower than -130 dB THD+N for common conversion ratios
  • Fast synchronization time: 128 input samples
  • Latency: 64/FSin + 2/FSout
  • Automatically adjusts to changes in both input and output sample rates
  • High input jitter tolerance
  • Input/output sample rate range: 8 kHz to 192 kHz
  • Sampling rate conversion ratios: 3.9 : 1 : 7
  • Features customized upon request

for the I2S/TDM interface

  • Runtime configurable serial audio formats: I2S, left-justified, right-justified or TDM
  • Supports all commonly used sample rates including (but not limited) 8, 11.025, 16, 22.05, 32, 44.1, 48, 96, and 192 kHz
  • Audio sample sizes: 8, 16, 24 or 32 bits
  • Supports slave or master modes
  • Supports up to 256 audio channels

Interfaces

  • AMBA-APB, AMBA-AHB or parallel interface for configuration, control and status
  • AMBA-APB, AMBA-AHB or parallel interface for audio input/output (backend interface)
  • I2S/TDM interfaces for audio input/output

Block Diagram

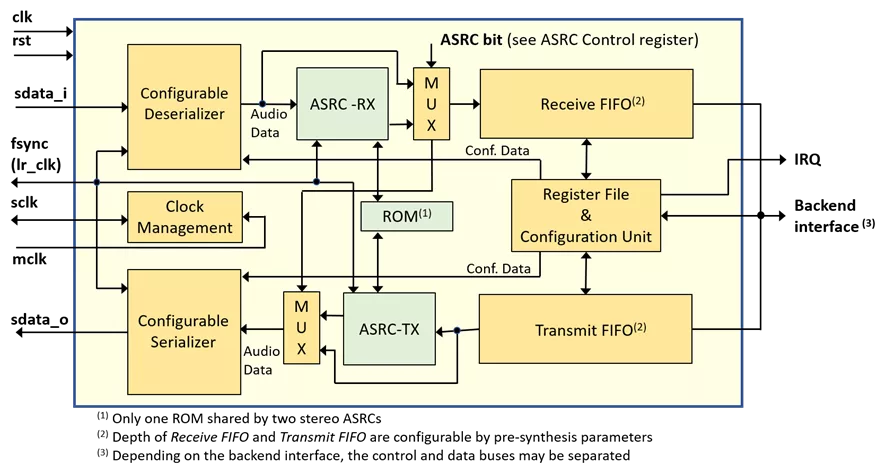

IPB-I2S-TDM-ASRC block diagram

Specifications

Identity

Part Number
IPB-I2S-TDM-ASRC
Vendor
Coreworks, S.A.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Coreworks, S.A.
HQ: Portugal
Contact Coreworks, S.A.

Learn more about I2S IP core
