I²C Slave

The I²C slave core is a simple I²C slave that provides a link between the I²C bus and the AMBA APB.

Overview

The I²C slave core is a simple I²C slave that provides a link between the I²C bus and the AMBA APB. The core is compatible with the Philips I²C standard and supports 7- and 10-bit addressing with an optionally software programmable address. Standard-mode (100 kb/s) and Fast-mode (400 kb/s) operation are supported directly.

Key features

  • AMBA APB interface
  • Optional programmable I²C address - The initial address is configurable via a VHDL generic. The designer can choose to leave the core's address programmable via an APB mapped register.
  • 10-bit address support. If the core is configured without a hard coded address software may also configure the core to use 7-bit addressing.
  • Four main modes, core can be configured to force a master into wait mode by lowering the SCL line during reception and/or transmission. See GRIP manual for details.
  • Clock stretching

Block Diagram

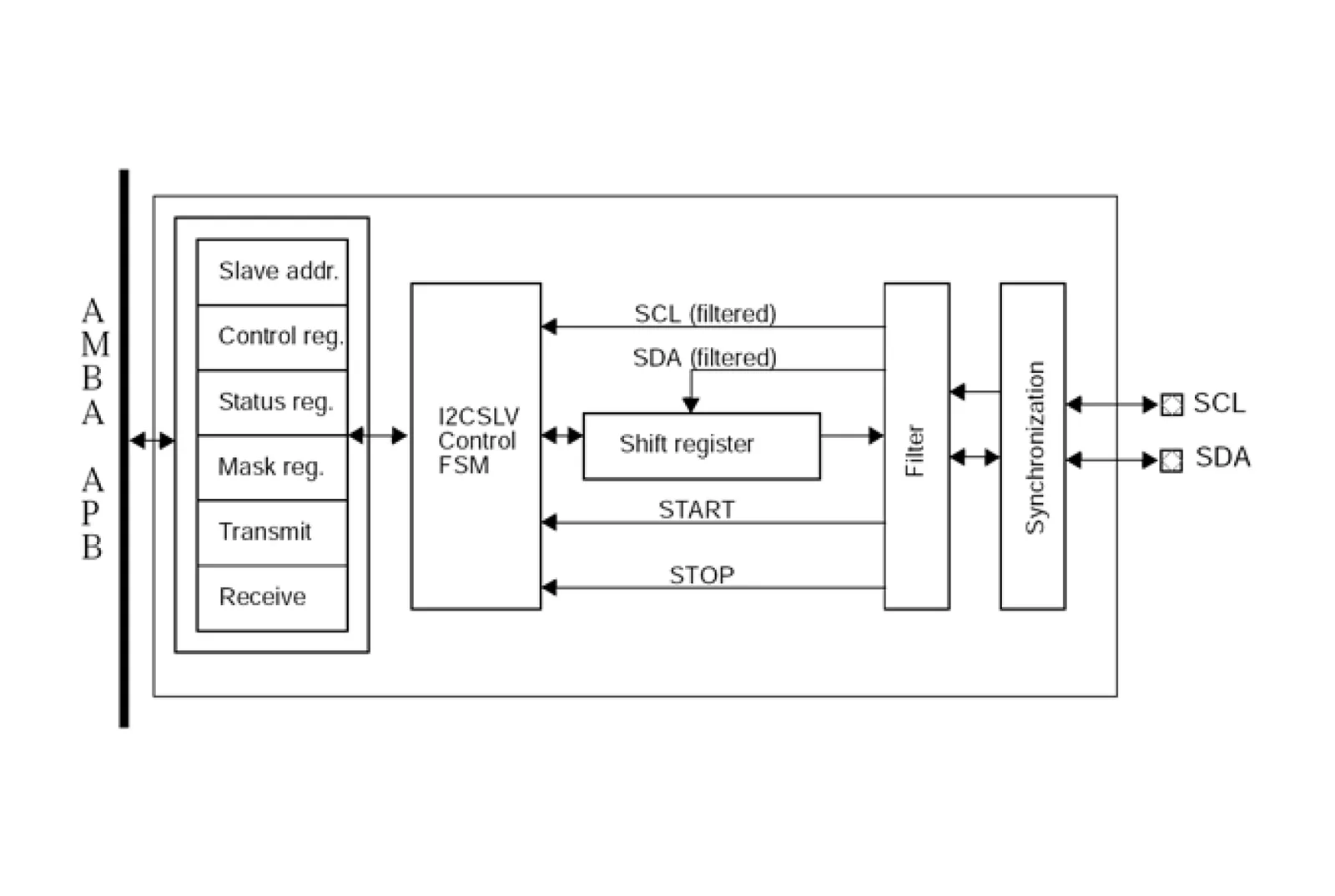

I²C Slave block diagram

Specifications

Identity

Part Number
I²C Slave
Vendor
Frontgrade Gaisler
Type
Silicon IP

Files

Product Sheet Download
