What is I2C Master Serial Interface Controller?
I2C Master Serial Interface Controller is a I2C / I3C IP core from ChipCraft listed on Semi IP Hub.
Vendor:
ChipCraft
Category:
I2C / I3C
I2C Master Serial Interface Controller
The CC-I2C_MST-APB is a synthesisable Verilog model of a I2C serial interface controller.
Overview
The CC-I2C_MST-APB is a synthesisable Verilog model of a I2C serial interface controller. The I2C core can be efficiently implemented on FPGA and ASIC technologies.
Key features
- I2C-compatible interface
- AMBA APB3 bus
- Standard and custom data rates
- Configurable setup/hold times
- Multi-master support
- Clock strechting support
- Programmable SDA/SCL input filter
- Automatic Start, Stop, Repeated Start, Acknowledge support
- 7 and 10 bit addressing format support
- Maskable interrupts
- Dedicated upstream and downstream DMA interface
- Fully synthesizable synchronous design with positive edge clocking
- DFT ready

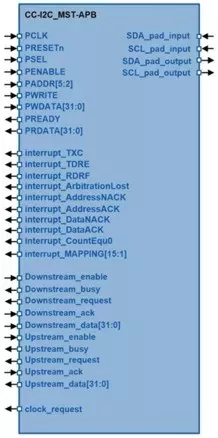

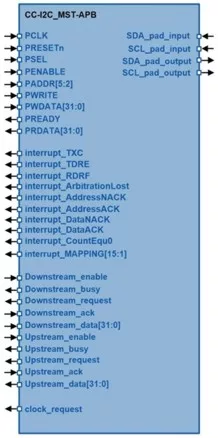

Block Diagram
CC-I2C_MST-APB block diagram
Benefits
- Synthesizable RTL Verilog source code
- Technology independent IP Core
- Suitable for FPGA and ASIC
- Silicon and FPGA proven
- Easy SoC integration
- Full implementation and maintenance support with individual approach
- Flexible licensing scheme
What’s Included?
- Verilog RTL source code
- Verification suite
- Datasheet and integration guide
- C-header file
- Constraints
- Technical support
Specifications
Identity
Part Number
CC-I2C_MST-APB
Vendor
ChipCraft
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Poland
