Vendor: Terminus Circuits Pvt Ltd. Category: PLL

High Speed 16GHz PLL

The High Speed 16GHz PLL generates a low jitter frequency outputs.

Contact Provider Request Datasheet
Samsung 28nm Pre-Silicon View all specifications

Overview

The High Speed 16GHz PLL generates a low jitter frequency outputs. We have 2 PLL offering with 16 GHz and 10GHz respectively. These clocks could be used to produce quadrature outputs and the frequency outputs are applicable for PCI Express Gen3.0/ Gen4.0 PHY transceivers and SerDes.

Key features

  • Type II ,3rd order low jitter PLL
  • Auto calibration for process and temperature (USP)
  • Programmable frequency using CSR registers
  • 8/10/16GHz quadrature clocks
  • Operating temperature -40 to 125
  • Standby / power down mode
  • Low silicon surface

Block Diagram

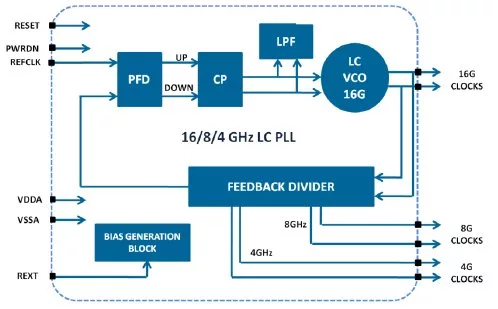

High Speed 16GHz PLL block diagram

Benefits

  • Clock multiplication
  • Clock for High speed generators for SerDes PHY
  • Clock Recovery

Applications

  • Clock multiplication
  • Clock for High speed generators for SerDes PHY
  • Clock Recovery

What’s Included?

  • GDS II Layouts
  • LEF abstracts
  • CDL netlists
  • Liberty timings
  • Verilog description
  • Datasheet
  • Integration note

Silicon Options

Foundry Node Process Maturity
Samsung 28nm 28nm 280 nm Pre-Silicon

Specifications

Identity

Part Number
High Speed 16GHz PLL
Vendor
Terminus Circuits Pvt Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Terminus Circuits Pvt Ltd.
HQ: Bangalore- 560094, India
Contact Terminus Circuits Pvt Ltd.
