Vendor: StarFive Category: Coherency

High-scalable, high-performance Interconnect fabric IP with cache coherence support

StarNoC-700 is the vendor's self-developed high-scalable, high-performance interconnect fabric IP supporting cache coherence, ena…

Contact Provider Request Datasheet

Overview

StarNoC-700 is the vendor's self-developed high-scalable, high-performance interconnect fabric IP supporting cache coherence, enabling the construction of manycore SoC solution.

Key features

Providing NoC with cache coherence

  • Connecting up to 256 CPU cores, IO devices, and DDR, while maintaining cache coherence within the SoC scope

High Performance:

  • Providing a maximum of 512 MB Last Level Cache (LLC) with Snoop Filter, enhancing the efficiency of coherence maintenance modules and memory hierarchy performance.

High scalability

  • Employing mesh NoC to enhance expandability, and a dedicated control NoC to support control command transmission

Low latency

  • Adopting a semi-custom design approach to reduce NoC transmission latency.

Efficient data exchange

  • Supporting CPU and IO devices to share the LLC, simplifying CPU and IO data exchange, and improving performance

Low power consumption

  • Supporting low power consumption technologies such as LLC way shutdown and Architecture Clock Gating

High reliability

  • Snoop Filter and LLC support ECC (SEC-DED, Single Error Correction Double Error Detection)

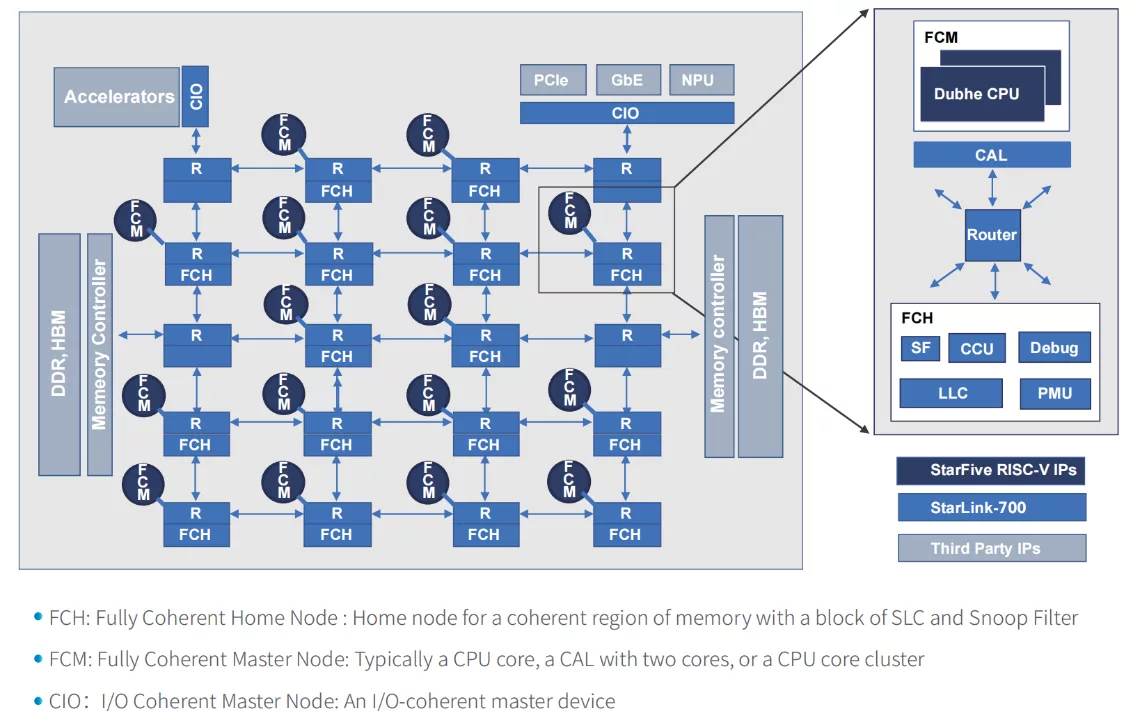

Block Diagram

StarNoC-700 block diagram

Benefits

  • High bandwidth, low power consumption, low latency
  • Support Component Aggregation Layer (CAL)
  • Topology: Mesh
  • Support multiple I/O Coherent Master Nodes (CIO)
  • Maximum node count: 12x12
  • Single node supports 3-5 devices
  • Configurable data path link width: 128/256/512b

Specifications

Identity

Part Number
StarNoC-700
Vendor
StarFive
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

StarFive
HQ: China
Contact StarFive
