High-precision temperature sensor - 15µA 0.1°C accuracy extended temperature range - UMC 0.25µm
CM6216ea is a temperature sensor macro with a linear analog output that enables a temperature measurement with ±0.1◦C accuracy.
Overview
CM6216ea is a temperature sensor macro with a linear analog output that enables a temperature measurement with ±0.1◦C accuracy.
The differential output voltage presents a slope of +840μV/◦C.
CM6216ea consumes only 15μA.
CM6216ea requires an external clock to control internal compensation circuitry.
The enable pin allow it to enter a stand-by mode with minimal power consumption, ideal for extreme low power applications that make use of low duty-cycle operation mode.
Preliminary measurements carried out on prototypes show ±0.25◦C temperature accuracy.
Key features
- ±0.1°C temperature accuracy
- Voltage slope: 840µV/◦C
- Temp. range:-60°C to 160◦C
- Supply voltage: 2.7V to 5.5V
- Lowpower consumption (15µA)
- Buffered analog output
Block Diagram

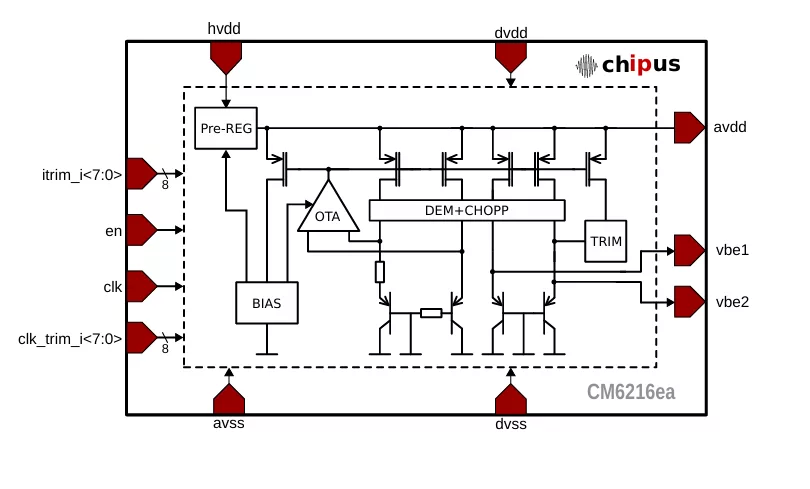

CM6216ea block diagram
Applications
- Environmental monitoring
- Heath care application
- IoT nodes
What’s Included?
- Datasheet / Integration Guide
- HDLModel avss
- Flat GDS Database / LVS Netlist
- Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 250nm | 250nm 2500 nm | — |
Specifications
Identity
Part Number
CM6216ea
Vendor
Chipus Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Brazil
Learn more about Temperature Sensor IP core
