Vendor: IP-Maker Category: NVMe Controller

High Performance NVMe for PCIe-based storage

Typical storage controllers are composed of a communication interface and a Nandflash controller.

Contact Provider Request Datasheet

Overview

Typical storage controllers are composed of a communication interface and a Nandflash controller. In this case, all the data flow is managed by the external host processor. However, this architecture cannot sustain high performance applications.

The IPM-NVMe_Device IP coreis a powerful data transfer manager integrated into the PCIe SSD Controller between the communication interface and the Nandflash controller, therefore off-loading the host CPU. The IPM-NVMe_Device IP is UNH-IOL NVM Express compliant. It is part of the official NVMe integrator’s list.

Server manufacturers benefit from driver standardization. All PCIe SSDs NVM Express-compliant support a unique driver providing ease-of-use and cost-reduced software development. The IP-Maker IPM-NVMe_Device IP core is fully-featured and easy to use in FPGA and SoC designs. The full hardware architecture, which is gates number optimized, provides a power efficient IOPS rate, leading to low power SSD controller capabilities.

Key features

  • NVM Express Compliant
  • Automatic Command Processing
  • Multi-Channel DMA
  • Up to 65536 I/O queues
  • Weighted round robin queue arbitration support
  • All commands/log management
  • Legacy interrupt/MSI/MSI-X support
  • Full NVMe registers support
  • Asynchronous event management
  • Low Power architecture
  • Available for PCIe Gen1/2/3/4/5/6
  • Host Memory Buffer management
  • Controller Memory Buffer management

Block Diagram

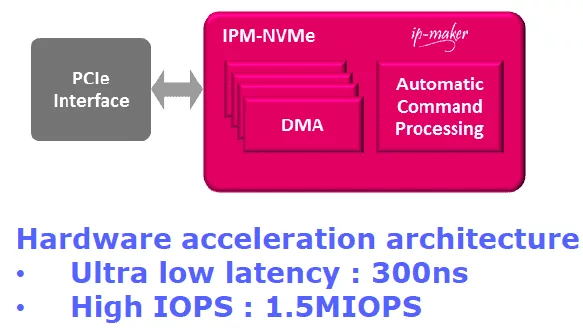

IPM-NVMe_device block diagram

Benefits

  • Available for PCIe Gen1/2/3/4/5/6
  • Ultra low latency
  • Very high throughput
  • Low power architecture
  • Low gate count
  • Cost reduction thanks to interface standardization
  • Validated IP reduces time tomarket

What’s Included?

  • Verilog RTL source code
  • Low level firmware
  • Synthesis scripts
  • Technical documentation
  • Technical support

Specifications

Identity

Part Number
IPM-NVMe_device
Vendor
IP-Maker
Type
Silicon IP
