Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: HDMI

HDMI 2.0 TX PHY

HDMI TX PHY is the physical layer of a single-link HDMI transmitter interface.

PHY HDMI View all specifications

Overview

HDMI TX PHY is the physical layer of a single-link HDMI transmitter interface. The HDMI TX PHY comprises three data lanes and one clock lane to perform the serialization and transmission of video/audio data and control information. The PHY can support maximum data rates 6Gbps/lane to satisfy HDMI 2.0 protocol. The PHY is suitable for 30b, 60b, or 120b input data transfers.

Key features

  • Compatible with HDMI 2.0/1.4 TX PHY operation
  • Supports up to 1080p at 120 Hz and 4K x 2K at 60 Hz HDTV display resolutions
  • Supports 3-D video formats
  • Supports deep color modes: 30, 36, and 48 bits
  • Supports link controller interface with 30 bits, 60 bits, or 120 bits data access
  • 50% duty-cycle output clock
  • I2C interface for configuration
  • Supports RX sensing and Hot Plug Detect (HPD)
  • Source termination impedance is auto-calibrated
  • Built-in Self-Test (BIST) is integrated inside
  • Support TMDS clock range from 40MHz to 600MHz

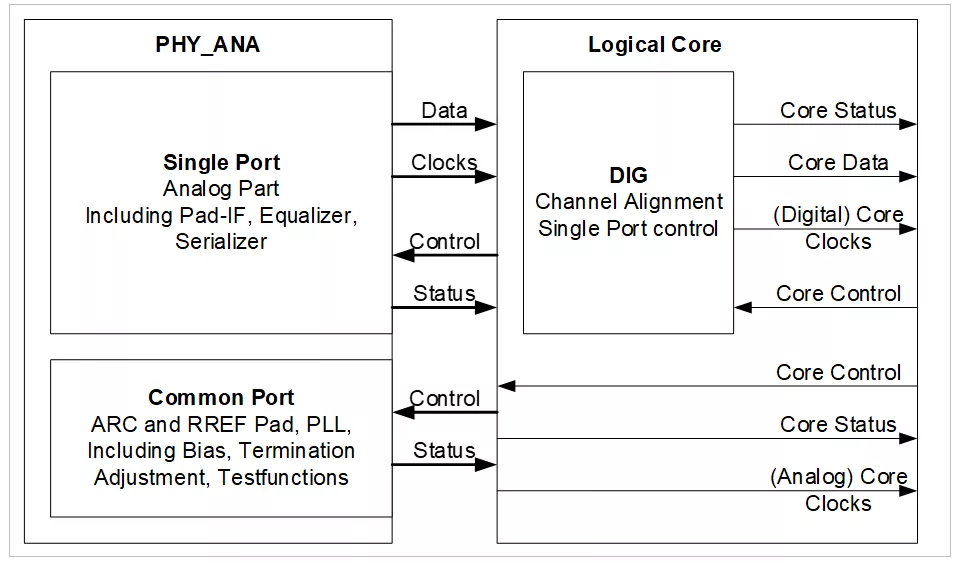

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
HDMI 2.0 TX PHY
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
PHY

Standards & Interfaces

Video Standard
HDMI

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
