Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: HDMI

HDMI 2.0 RX PHY

HDMI RX PHY is the physical layer of a single-port HDMI transmitter interface.

PHY HDMI View all specifications

Overview

HDMI RX PHY is the physical layer of a single-port HDMI transmitter interface. The HDMI RX PHY comprises three data lanes and one clock lane to perform the serialization and transmission of video/audio data and control information. The PHY can support a maximum data rate of 6 Gbps/lane to satisfy HDMI 2.0 protocol. The PHY supports input data transfers of 30, 60, or 120 bits.

Key features

  • Compatible with HDMI 2.0/1.4 RX PHY operation
  • Supports deep Color modes: 24, 30, and 36 bits
  • Includes an audio clock regeneration block
  • Production test and debug capabilities
  • Supports TMDS clock range from 25 MHz to 340 MHz
  • Supports TMDS character rate from 250 MHz to 600 MHz

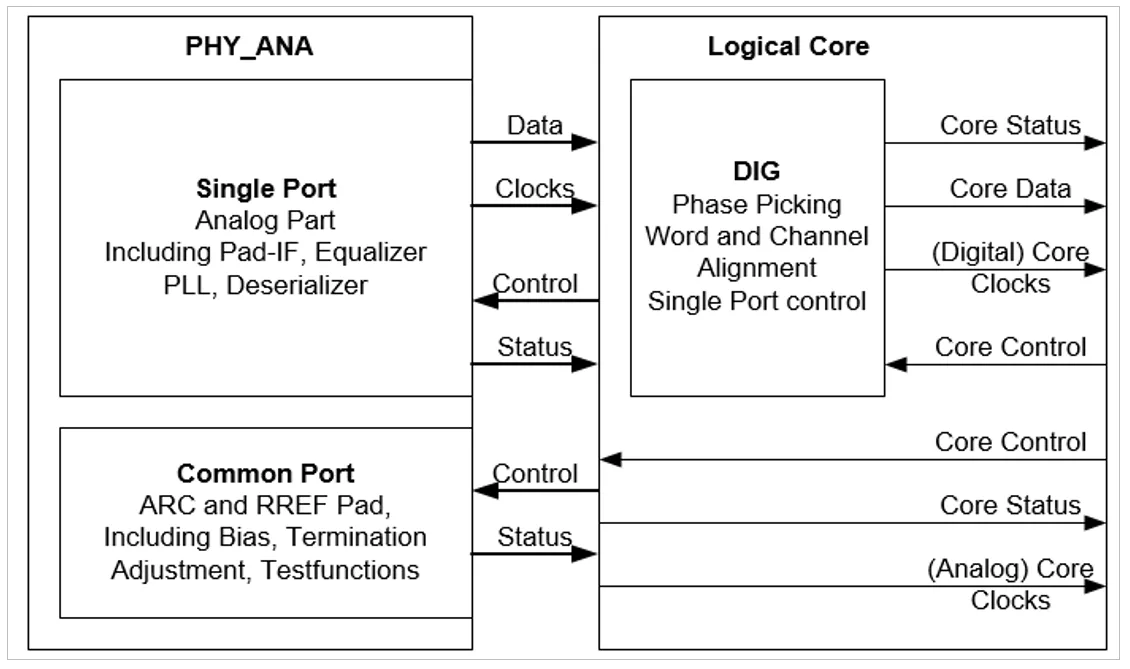

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
HDMI 2.0 RX PHY
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
PHY

Standards & Interfaces

Video Standard
HDMI

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
