Vendor:
IP Cores, Inc.
Category:
HDCP
HDCP 2.0 Encryption Suite
HDCP Suite consists of hardware and software components implementing the HDCP 2.0 protocol.
Overview
HDCP Suite consists of hardware and software components implementing the HDCP 2.0 protocol.
The hardware components are fully synchronous and available as Verilog source. The software components are available in C language.
Key features
- Support for HDCP 2.0
- Support for all HDCP configurations:
- HDCP Transmitter (-TX)
- HDCP Receiver (-RX)
- HDCP Repeater (-RPT)
- Implementation of the HDCP Authentication protocol:
- Authentication and Key Exchange (AKE)
- With Key Derivation
- Locality Check
- Session Key Exchange (SKE)
- Authentication with Repeaters
- Authentication and Key Exchange (AKE)
- Data encryption:
- Utilizes HDCP Cipher (AES-128-CTR)
- Includes the Link Synchronization
- Transmitter and Receiver utilize the counter information in the PES Private Data
- FIFO-like flow-through interface with flexible bit width; simple integration into the datapath.
- Microprocessor-friendly interface for programmable I/O is optional
- Components
- HDCP software written in C (CPU subsystem is not included)
- Hardware accelerators
- AES1-CTR-HDCP: AES encryption/decryption capable of handling the PES streams
- RSA2: An RSA hardware accelerator (optional, high-end CPUs can use the software implementation)
- TRNG1: A true random number generator (optional, if entropy bits are available in the design, a software implementation can be used)
- SHA2-256: A Sha-256 hash accelerator (optional, most CPUs can use the software implementation)

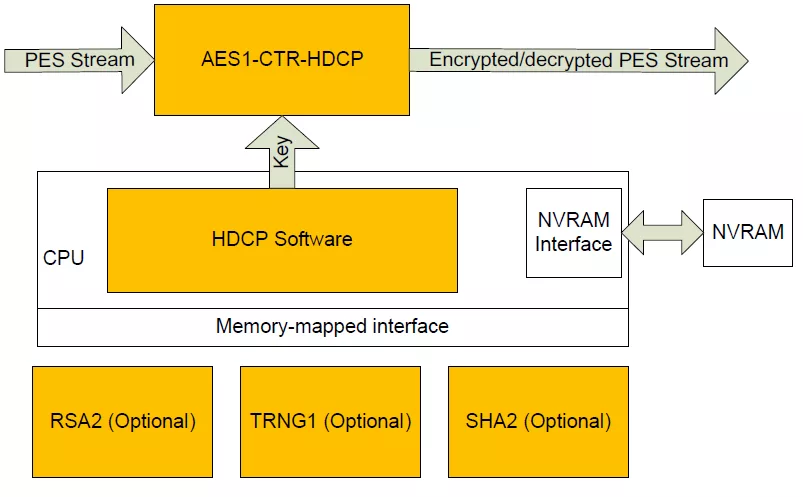

Block Diagram
HDCP block diagram
Applications
- Digital rights management (DRM)
- HDCP 2.0 implementations for generic wired and wireless interfaces
Specifications
Identity
Part Number
HDCP
Vendor
IP Cores, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
