What is Generic CCM AES Core?
Generic CCM AES Core is a Symmetric Crypto IP core from IP Cores, Inc. listed on Semi IP Hub.
Vendor:
IP Cores, Inc.
Category:
Symmetric Crypto
Generic CCM AES Core
The CCM1 cores are tuned for mid-performance generic AES-CCM applications per NIST SP 800-38C.
Overview
The CCM1 cores are tuned for mid-performance generic AES-CCM applications per NIST SP 800-38C. Specific protocol implementations are available in integrated cores:
- WPA2 for IEEE 802.11i (Wi-Fi)
- CCM3 for IEEE 802.15.3 (UWB)
- CCM3M for MBOA
- CCM6 for IEEE 802.16e (WiMAX)
- CCMZ1/2 for IEEE 802.15.4 (Zigbee)
CCM1 core uses flow-trough design with dedicated inputs for key and nonce. Cores contain the base AES core AES1 and are available for immediate licensing. The design is fully synchronous and available in both source (Verilog or VHDL) and netlist form.
- WPA2 for IEEE 802.11i (Wi-Fi)
- CCM3 for IEEE 802.15.3 (UWB)
- CCM3M for MBOA
- CCM6 for IEEE 802.16e (WiMAX)
- CCMZ1/2 for IEEE 802.15.4 (Zigbee)
CCM1 core uses flow-trough design with dedicated inputs for key and nonce. Cores contain the base AES core AES1 and are available for immediate licensing. The design is fully synchronous and available in both source (Verilog or VHDL) and netlist form.
Key features
- Small size: From 10,000 ASIC gates
- Completely self-contained: does not require external memory
- Supports encryption and decryption,
- Includes key expansion (scheduling)
- Support for CCM mode of the AES cipher
- Test bench provided
Block Diagram

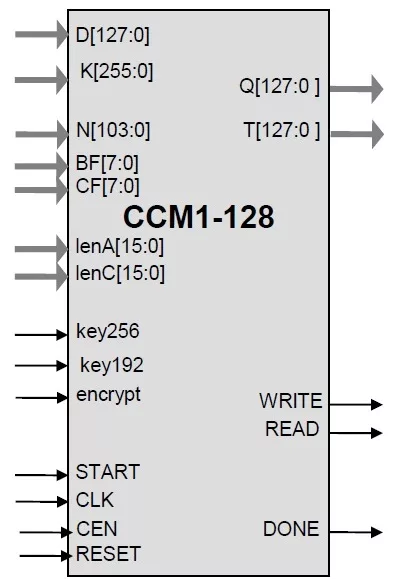

CCM1 block diagram
Applications
- Generic CCM-AES applications
What’s Included?
- HDL Source Licenses
- Synthesizable Verilog RTL source code
- Test bench (self-checking)
- vectors for testbenches
- Expected results
- Simulation script
- Synthesis script
- User Documentation
- Netlist Licenses
- Post-synthesis EDIF
- Testbench (self-checking)
- vectors for testbenches
- Expected results
- Place & Route script
- Simulation script
Specifications
Identity
Part Number
CCM1
Vendor
IP Cores, Inc.
Type
Silicon IP
Security
Crypto Algorithm
AES
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
