Overview
These free-running oscillators are ideal for use as watch-dog timers and core clock generators for MCUs and low-power chips with competitive features. No external components are required.
Silicon proven or mass production in 2n, 3n, 4/5n, 6/7n, 12/16n, 22n, 28n & 40n at TSMC.
Key features
- Fully integrated. No pins or external compo nents needed.
- Uses only baseline logic process masks.
- Up to 12-bit frequency programmability to calibrate out process variations (within ±6 sigma process window).
- Low frequency variation due to supply volt age changes: <60ppm/mV.
- Total frequency variation down to ±1% across voltage, temperature, and aging.
- Low period jitter <2% of clock period, peak to-peak.
- Low area (e.g. 0.004mm² @ 2n)

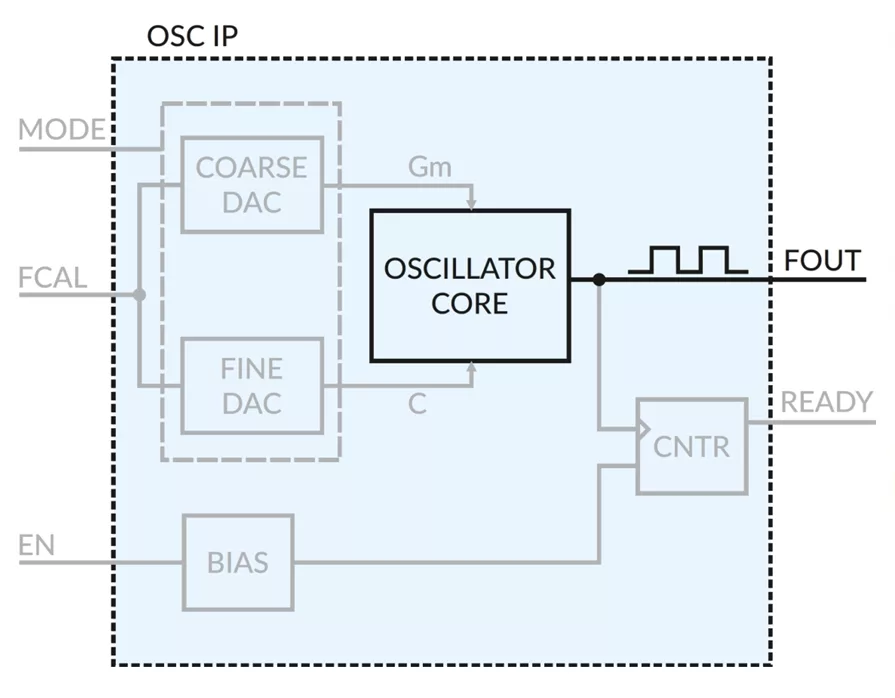

Block Diagram
Click to open fullscreen
Benefits
- Compact and low power
- No external components
- Baseline CMOS logic process masks only
- Excellent frequency precision over PVT after trimming
What’s Included?
- GDSII
- CDL Netlist
- Liberty timing models (.lib)
- Verilog Model
- LEF layout abstract
- Application Note
- Industry leading support by IP designers
- Comprehensive silicon test reports
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 2nm | N2P | Available on request |
| TSMC | 3nm | N3P | Available on request |
| TSMC | 5nm | N5 | Available on request |
| TSMC | 6nm | N6 | Available on request |
| TSMC | 12nm | FFC+ | Available on request |
| TSMC | 16nm | 16nm 160 nm | Available on request |
| TSMC | 22nm | ULP | Available on request |
| TSMC | 28nm | 28nm 280 nm | Available on request |
| TSMC | 40nm | G | Available on request |
