PCIe® 6.x Controller IP

Production-grade PCIe® 6.x Controller IP — FPGA-validated validated for low-latency throughput, robust compliance, and easy FPGA/ASIC integration.

Overview

PCIe Gen6 Controller IP by Logic Fruit Technologies for ultra-high-speed, low-latency data transfer in advanced computing systems.

Key features

  • Silicon-Proven Reliability: Supports up to x16 link width
  • Ultra-Low Latency Datapath: Support for Tx/Rx cut-through
  • Standard Bus Integration: Supports 32 GT/s and 64 GT/s precoding
  • Full Parameterization: Supports 14-bit tags for TLPs (Transaction Layer Packets)
  • Comprehensive Testbench: Supports buffering and credit management
  • Minimal Logic Footprint: Area-efficient gate count maximizing resource headroom for system application logic.
  • DO-254 / Safety Ready: Design artifacts structured for easy compliance certification in aerospace domains.
  • Expert Field Support: Direct access to our dedicated IP design engineers for fast integration and bring-up.

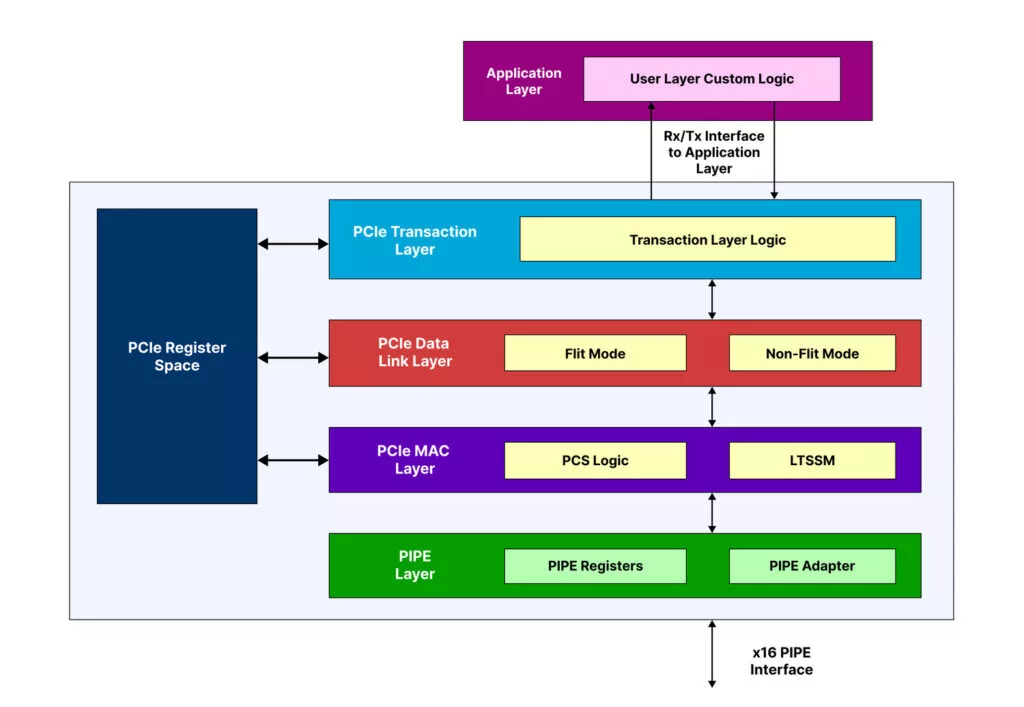

Block Diagram

PCIe GEN6 Controller block diagram

Benefits

  • Supports up to x16 link width
  • Support for Tx/Rx cut-through
  • Supports 32 GT/s and 64 GT/s precoding
  • Supports 14-bit tags for TLPs (Transaction Layer Packets)
  • Supports buffering and credit management

Specifications

Identity

Part Number
PCIe GEN6 Controller
Vendor
Logic Fruit Technologies
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
