Vendor: Helion Technology Limited Category: Hash / MAC

Fast Hash IP core

The Helion Fast Hash core family implements the NIST approved SHA-1, SHA-256, SHA-384 and SHA-512 secure hash algorithms to FIPS …

Contact Provider Request Datasheet

Overview

The Helion Fast Hash core family implements the NIST approved SHA-1, SHA-256, SHA-384 and SHA-512 secure hash algorithms to FIPS 180-3 and the legacy MD5 hash algorithm to RFC 1321. These are high performance cores that are available in single or dual algorithm versions and have been designed specifically for use in ASIC.

The hash algorithms take as input a message of arbitrary length, process the message as a series of 512 or 1024 bit blocks, and produce as output a compressed representation of the message data in the form of a message digest, the length of which varies with hash algorithm. Applications for the hashing cores include implementations of the standard Keyed-Hash Message Authentication Code (HMAC) described in FIPS 198-1. They are commonly used in the IPsec and TLS/SSL protocols, as well as Digital Signature applications, where a hash function is required to ensure both data integrity and origin authentication.

Key features

  • Implements one or more of SHA-1, SHA-256, SHA-384, SHA-512 & MD5 hash algorithms
  • Fast operation – one clock per hashing algorithm round
  • Performs automatic message length calculation and padding insertion
  • Optional user initialisation of IVs for accelerated HMAC support
  • HMAC wrapper available for quick and easy implementation
  • Optional state unload/reload feature for handling fragmented messages
  • Simple external interface
  • Optimised for use in ASIC

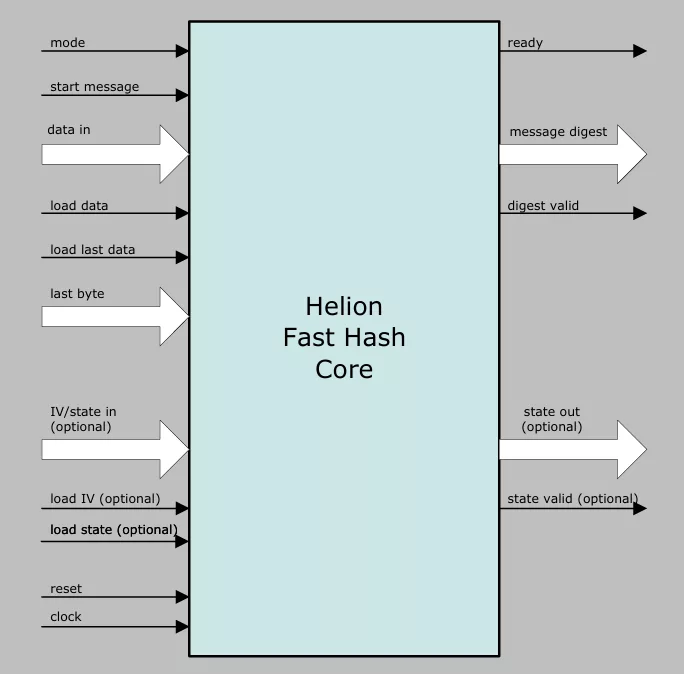

Block Diagram

Fast Hash IP core block diagram

What’s Included?

  • Fully synthesisable RTL source code
  • VHDL/Verilog simulation model and testbench
  • User documentation

Specifications

Identity

Part Number
Fast Hash IP core
Vendor
Helion Technology Limited
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Helion Technology Limited
