Vendor: Omni Design Technologies, Inc. Category: LDO Voltage Regulator

External Compensated LDO - 300mA Output on TSMC 16 FFC

The ODT-LDO-EC-300M-16FFCT is a low dropout (LDO), linear regulator for integration in a SoC.

TSMC 16nm FFC View all specifications

Overview

The ODT-LDO-EC-300M-16FFCT is a low dropout (LDO), linear regulator for integration in a SoC. The LDO uses advanced control techniques to achieve excellent transient response, excellent PSRR performance and low noise.

The LDO has an integrated pass transistor and is stable with an off-chip capacitor of 10µF.

Key features

  • TSMC 16/12nm FFC
  • Input voltage of 1.2V
  • Output voltage of 0.8V to 0.95V
  • Up to 300mA output current
  • Stable with off-chip capacitor 10µF capacitance
  • Excellent PSRR
  • Fast load transient recovery
  • Compact area
  • Supports high impedance output mode
  • Functional from -40°C to 125°C

Block Diagram

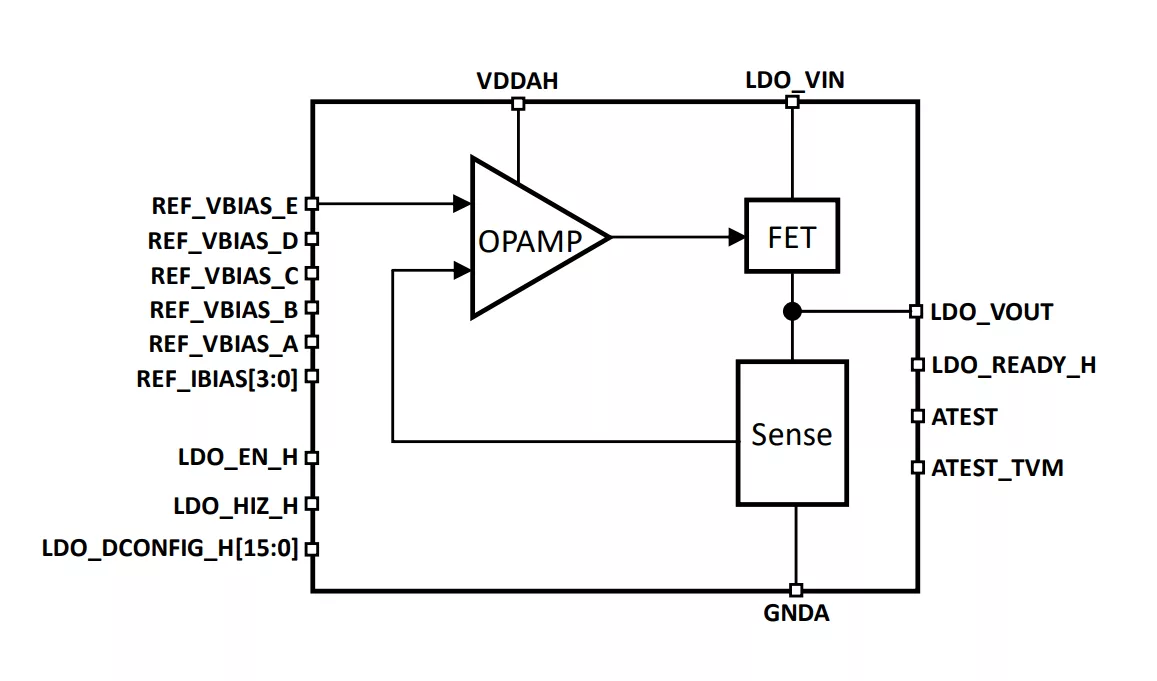

ODT-LDO-EC-300M-16FFCT block diagram

Applications

  • General purpose software defined radio
  • High speed data acquisition systems
  • Cellular base station
  • Broadband communications
  • High-speed medical imaging
  • Wideband satellite receiver

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
TSMC 16nm FFC —

Specifications

Identity

Part Number
ODT-LDO-EC-300M-16FFCT
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Provider

Learn more about LDO Voltage Regulator IP core
