eMMC v5.1/A/B Verification IP

Truechip's eMMC 5.1/A/B Verification IP provides effective and efficient way to verify the component interfacing with the eMMC interface of an ASIC / FPGA / SoC. Truechip's eMMC verification IP is fully complied with standard eMMC version JESD84-B51, JESD84-B51A, JESD84-B51B from JEDEC. This VIP is a Light Weight VIP with easy plug and play features.

• Compliant to JEDEC eMMC version JESD84-B51, JESD84-B51A and JESD84-B51B.
• Supports eMMC devices from all leading vendors.
• Supports configuration for both host and device.
• Supports all data widths 1x, 4x and 8x.
• Supports all speed modes (Legacy Speed Mode and High Speed Mode).
• Supports both Single Block and Multiple Block transfers.
• Supports Tuning.
• Supports general purpose commands.
• Supports Lock / Unlock feature.
• Supports Block Read and Block Write.
• Supports device density of greater than or equal to 2GB (Low Capacity and High Capacity).
• Supports both Normal Booting and Alternate Boot operation.
• Supports Sleep Mode and Sleep Notification.
• Supports Reliable Write feature.
• Supports Write Protection Mechanism.
• Supports Multiple Partitions (Boot Area / User Area / General Purpose Partition).
• Supports Enhanced Partition Types.
• Supports both SDR and DDR.
• Supports Data Removal Commands: Erase (High Capacity) / Trim / Sanitize / Discard.
• Supports Secure Erase/TRIM.
• Supports Replay Protect Memory Block (RPMB).
• Supports Background Operations.
• Supports High Priority Interrupt.
• Supports boot partition, boot operation and boot partition write protection.
• Supports device reset to pre-idle state.
• Supports Secure Erase and Secure Trim.
• Supports Sleep and Awake.
• Supports Secure Write Protect Mode.
• Supports Command Queuing.
• Supports Enhanced Strobe in HS400 Mode.
• Supports High Speed Mode (HS200, Hs400).
• Supports Application-Specific commands.
• Supports Context Management.
• Supports Data Tag Mechanism.
• Supports Packed Commands.
• Supports Dynamic Capacity Management.
• Supports Power Off Notifications and Packed Commands.
• Supports Extended Security Commands.
• Supports Power Saving Mode.
• Supports Field Firmware Update.
• Supports Real Time Clock.
• Supports All Device Statuses (Switch Error, CSD/CID Error, Block Length Error etc.)
• Supports Cache (Including Barrier and Flush Operation).
• Supports Production State Awareness.
• Supports Hardware Resets and Software Reset (CMD0).
• Supports Sector Memory Organisation.
• Supports for all timing delay ranges.
• Reports various timing errors, which can be used to check any timing violation.
• Provides full control to the user to enable / disable various types of messages.
• Supports advanced SystemVerilog features like constrained random testing.
• Supports dynamically configurable modes.
• Strong protocol monitor with real-time exhaustive programmable check.
• Supports Dynamic as well as static error injection scenario.
• Built-in coverage analysis.
• Graphical analyser to show transaction for easy debugging.
• Provides a comprehensive user API (callbacks) in all components and BFMs.
• Provides intention check for all the scenarios.
• Supports all the setup/hold timing parameter checks compliant to the eMMC specification.

• Available in native System Verilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

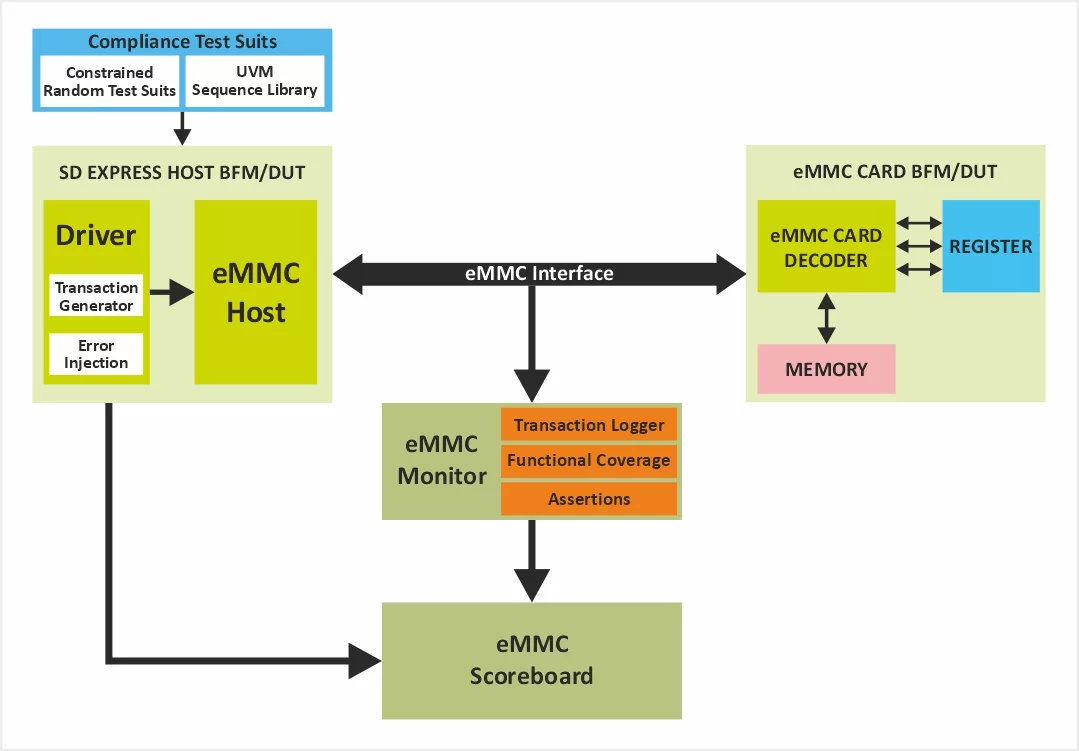

• eMMC Host controller BFM / Agent
• eMMC Device Controller / Memory BFM / DUT
• eMMC Monitor
• eMMC Scoreboard
• Test Bench Configurations
• Test suite available in source code:​
  • Basic Protocol Tests
  • Directed and random test
  • Assertions & Cover Point Tests
• Integration guide / User Manual /release notes
• GUI analyzer to view simulation packet flow
