Vendor:
VinChip Systems Inc.
Category:
USB
Embedded Host Controller 1. 1
The USB 1.1 embedded host controller is designed for flexibility and ease of use; facilitates implementation of a wide variety of…
Overview
The USB 1.1 embedded host controller is designed for flexibility and ease of use; facilitates implementation of a wide variety of applications like PDA to a printer/ hard disk, Camera to a printer / hard disk, etc.. This design is technology independent and migrating it to any technology is fast and this can be easily bridged to ARM Bus, using the vendor’s ARM cores.
Key features
- VHDL / Verilog source code provided.
- USB1.1 specification compliant.
- Technology independent.
- Portable ‘C’ software stack provided.
- Integrated root hub with 1 to 3 ports.
- Supports low and full speed devices.
- Handles 127 USB devices down stream.
- Supports Control, Bulk, Isochronous and interrupt data transfer at all speeds.
Block Diagram

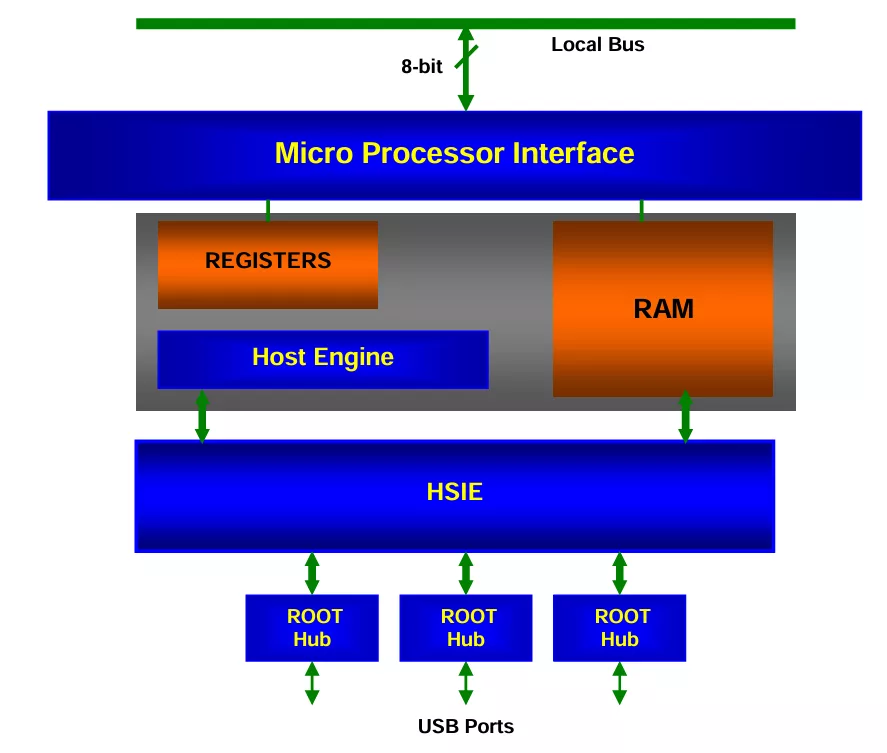

VEMB1 block diagram
Specifications
Identity
Part Number
VEMB1
Vendor
VinChip Systems Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
