What is eDP 1.4 Transmitter?
eDP 1.4 Transmitter is a Displayport IP core from Nano Silicon listed on Semi IP Hub.
Vendor:
Nano Silicon
Category:
Displayport
eDP 1.4 Transmitter
Key features
- Compliant with Embedded DisplayPort 1.4 specification
- Main Link supports 1, 2 or 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
- 4 channel S/PDIF Digital Audio Input
- Supports Enhanced Framing Mode
- Automatic Link-Training with option of firmwarecontrolled Link-Training procedure
- Supports Fast Link Training
- Supports AUX Channel for Access of DPCD and EDID
- Supports Deep-Color up to 48-bit RGB/YCbCr Digital Video Transport
- Supports Advanced Link Power Management
- Supports GTC function
- Supports Panel Self Refresh function

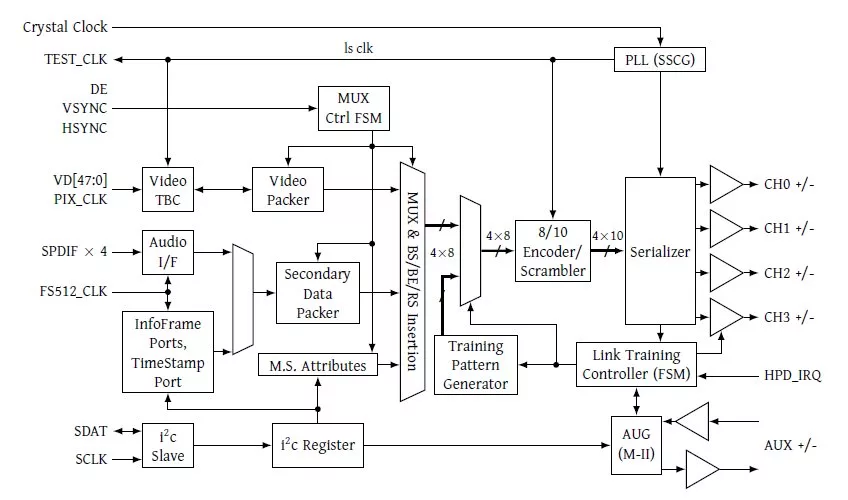

Block Diagram
eDP1.4_TX block diagram
Applications
- LCD TV
- HDTV
- Projectors
- Legacy Converter
Specifications
Identity
Part Number
eDP1.4_TX
Vendor
Nano Silicon
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
