DVB-T/H Modulator

The MVD DVB-T/H modulator is a drop-in module that includes the following functions : · Input data framer from DVB-SPI source (MP…

Contact Provider Request Datasheet

Overview

The MVD DVB-T/H modulator is a drop-in module that includes the following functions :
· Input data framer from DVB-SPI source (MPEG-TS flow)
· DVB-T/H modulator (Energy dispersal, Reed Solomon encoder, Convolutional interleaver, FEC convolution encoder, Inner interleaver, QPSK/QAM symbol mapper, Framer with pilots & TPS inserter, IFFT and guard interval insertion)
· Flexible Digital Upsampler
· Modulator for IF output
· Output for simple DAC (14 bits) or baseband outputs (2x16bits)

Key features

  • ETSI, DVB-T/H (EN 300 744 V1.5.1) Compliant baseband transmitter for Digital Terrestrial Television
  • · The MVD modulator cores can be delivered with an Intermediate Frequency output or a RF output when using Analog Devices or Maxim RF DACs (see separate datasheet, available on request)
  • · Drop-in module for Xilinx Spartan-6, Virtex-6, Artix-7, Kintex-7, Virtex-7, Zynq FPGAs
  • · Single clock (up to 140 MHz+ for Spartan-3/6™, 180 MHz+ for Virtex-5/6™)
  • · Robust SPI input (discarding incorrect input packets)
  • · PCR re-stamping
  • · Single channel, supports hierarchical transmission
  • · Configurable Convolutional Rate
  • · Configurable in-depth interleaving for DVB-H
  • · Programmable QPSK, 16-QAM and 64-QAM Symbol Mapping
  • · Configurable support for 2k, 8k and 4k (DVB-H) OFDM modes
  • · Programmable Guard Interval (1/4, 1/8, 1/16, 1/32)
  • · Supports variable channel width 5MHz to 8MHz
  • · Intermediate frequency output for single DAC (14 bits) or baseband outputs (2 x 16 bits)
  • · Single / multi channel
  • · Fully synthesizable RTL VHDL design (not delivered) for easy customization
  • · Design delivered as Netlist
  • · MER > 42dB
  • · Carrier Suppression > 45dB

Block Diagram

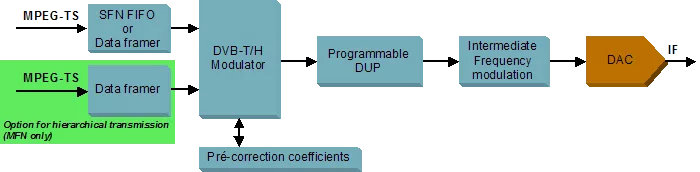

MVD_DVB_TH block diagram

Benefits

  • The MVD DVB-T/H modulator may be used in applications related to terrestrial transmission, typically at the head end.

Applications

  • The MVD DVB-T/H modulator may be used in applications related to terrestrial transmission, typically at the head end.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MVD_DVB_TH
Vendor
MVD Cores
Type
Silicon IP

Provider

MVD Cores
HQ: France
MVD Cores is an engineering team highly specialized in Digital Video Broadcasting (DVB) and FPGA technologies. We provide IP cores for Processing, Transporting and Transmission of MPEG, DVB, ATSC & IPTV standards for Xilinx FPGAs. The products and services catalog contains a wide range of on-the-shelf IPs to build solutions to carry MPEG-TS to RF. Our IPs cover almost all worldwide standards of current technologies for broadcasting over Digital Terrestrial Television (DTT), Cable TV (CATV) and Satellite.
