Vendor: MVD Cores Category: Symmetric Crypto

DVB-CSA Scrambler

The MVD DVB-CSA Scrambler core allows to encrypt MPEG-TS stream using ETSI specified DVB Common Scrambling Algorithm (CSA2).

Overview

The MVD DVB-CSA Scrambler core allows to encrypt MPEG-TS stream using ETSI specified DVB Common Scrambling Algorithm (CSA2).

Key features

  • Drop-in module for Spartan™-6, Virtex™-6, Artix™-7, Kintex™-7, Virtex™-7 FPGAs and Zynq™
  • DVB/ATSC compliant
  • Manage odd/even key encryption
  • Selection of up to 64 PIDs and 32 Keys at the same time (any PID can use any key)
  • Automatically update encryption flags of MPEG-TS packet header
  • Supports 188, 204 and 208 bytes packet input
  • Supports Data Packet or Data Burst format
  • DVB-CSA Scrambler does not include ECM/EMM packets insertion nor CAT modification (see remultiplexer core option for these features)
  • Full synthesizable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist

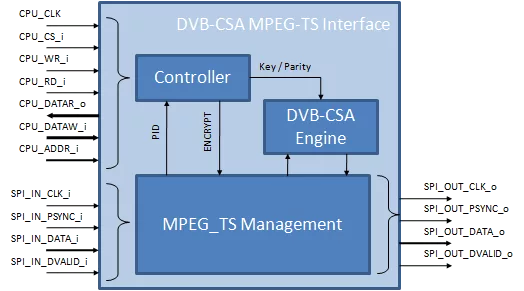

Block Diagram

Applications

  • The MVD DVB-CSA Scrambler core can be used to encrypt MPEG-TS stream in order to broadcast it in a basic local network and gives access to the contents to only authorized user.

Specifications

Identity

Part Number
MVD_DVB-CSA_SCRAMBLER
Vendor
MVD Cores
Type
Silicon IP

Files

Note: some files may require an NDA depending on provider policy.

Provider

HQ: France
