Dual 12-Bit 20 to 200MS/s 1.2V ADC, CMOS 90nm
The nSAD_TS90GP_1V2_AD2x12b200M is a dual 200MS/s, 11 ENOB, dual pipeline AD converter designed on the TSMC 90 GP technology.
Overview
The nSAD_TS90GP_1V2_AD2x12b200M is a dual 200MS/s, 11 ENOB, dual pipeline AD converter designed on the TSMC 90 GP technology. Built around a fully-differential pipeline converter and a digital error correction circuitry, it consumes 140mW on silicon, reaching an energy efficiency of 340fJ/conversion-step. A low noise input buffer is provided for easier interfacing with your analog/RF front-end.
Key features
- TSMC 90nm general purpose 1.2V CMOS process
- Single 1.2V supply
- 20 to 200 Mspls/s scalable sampling rate
- 0.5 Vp_diff input dynamic range
- Up to 100MHz input buffer signal bandwidth
- DNL = ±0.5 LSB typ., INL = ±1 LSB typ.
- SNR = 68dBFS @ Fin = 10MHz and 200MS/s
- SFDR > 72dBc @ Fin = 10MHz and 200MS/s
- Fully internal reference voltage generator and bias circuitry. No external decoupling needed.
- Proprietary architecture enhancements allowing very high conversion efficiency
- less than 1.3 mm2 core area including two input buffers, the reference generator, biasing and internal decoupling
- Power down mode
Block Diagram

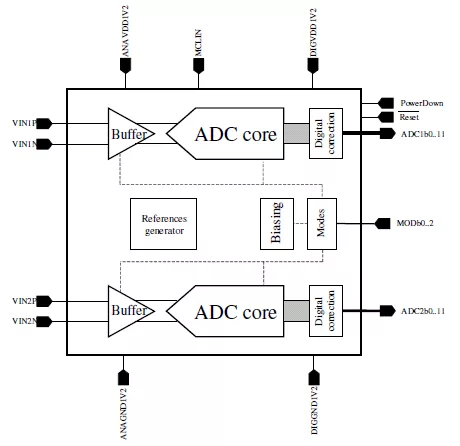

NSAD_TS90GP_1V2_AD2X12B200M block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 90nm | CIS | — |
Specifications
Identity
Part Number
NSAD_TS90GP_1V2_AD2X12B200M
Vendor
nSilition
Type
Silicon IP
Analog
Resolution bits
12 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Belgium
