DP/eDP

The DP/eDP IP is designed for transmitting or receiving video and audio signals between the video source devices and display devices. It is fully compliant with DP1.4 and eDP1.4 specifications. The IP provides both PHY and controller solutions, offering a reliable implementation for DisplayPort and embedded DisplayPort interfaces that can be seamlessly integrated in the SoCs used in multimedia devices.

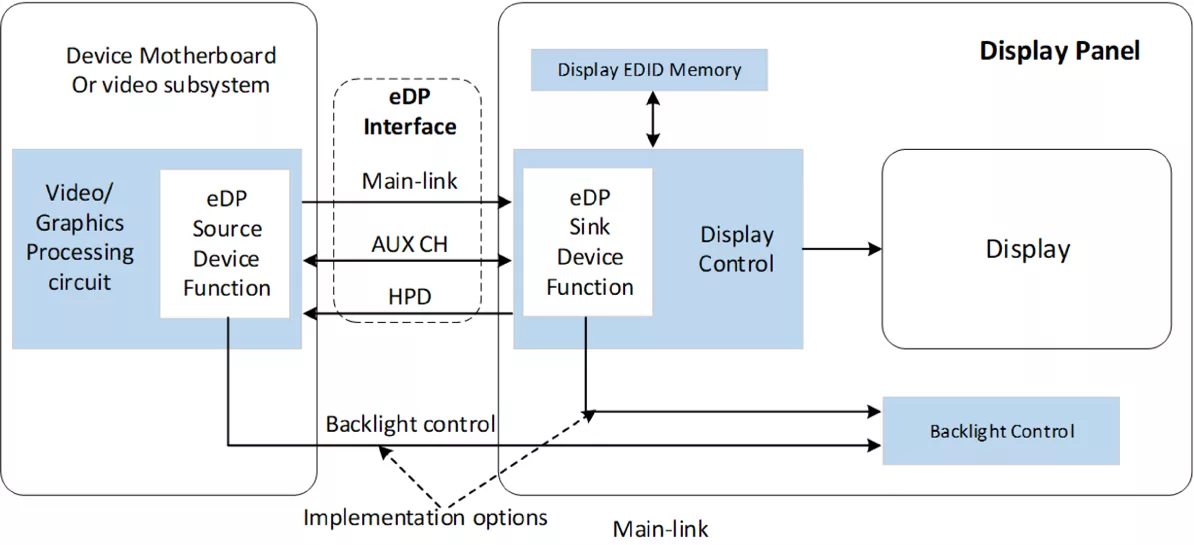

The eDP/DP TX IP transmits video, audio, and auxiliary data from a video source device to a display device. It consists of a digital controller and a physical layer. The digital controller processes the input video and audio data and outputs encoded data to the physical layer. The physical layer includes the main link, the AUX channel, a PLL, and a bias circuit, which convert the parallel data to a serial stream.

The eDP/DP RX IP receives and recovers video and audio data from a DP/eDP source device. It also comprises a physical layer and a digital controller. The physical layer converts the received serial stream to parallel data and outputs it to the digital controller. The digital controller decodes the parallel data and recovers the video and audio information.

• Compliant with DP1.4 and eDP1.4 specifications
• Supports 1/2/4-lane configuration
• Supports data rate up to 8.1Gbps (HBR3) per data lane
• Supports RGB and YCbCr444/422/420 video formats with 6/8/10/12/16-bit color depth
• Supports 8-ch I2S and 2-ch S/PDIF audio interface with sampling rate up to 192KHz
• Supports AUX channel working in 1MHz Manchester-II coding mode
• Supports programmable termination and equalization
• Supports HDCP1.4/2.2 (optional)
• Supports DSC1.2 (optional)
• Supports SSC modulation
• Supports BIST and Loopback
• APB slave interface for internal register access
• Built-in low jitter core PLL, bandgap reference, and optional pixel PLL
• The area and power consumption correlate strongly with process node and data lane count, and please refer to detailed datasheet
• For USB Type-C application, please refer to the detailed datasheet

• Low power consumption
• Fully customizable
• Small area
• Simple integration process
• Available options include
  • Test chips and test boards
  • FPGA integration support
  • Chip level integration

• Datasheet
• Physical Integration Guide
• Timing Library Model (LIB)
• Encrypted Verilog Model
• Library Exchange Format (LEF)
• GDSII Database
• Evaluation Board if Available
