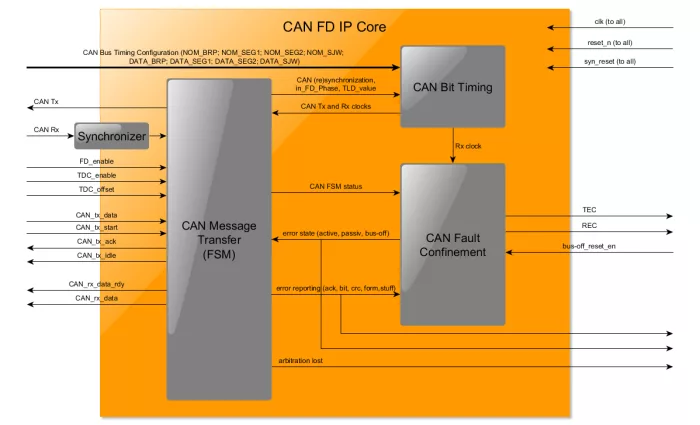

The CAN FD Controller implements a Controller Area Network as specified in the ISO 11898:2015 Part 1, supporting both Classical and Flexible Data Rate CAN frame formats. The CAN FD Controller supports bit rates up to 1 Mbit/s for Classical CAN frame format and up to 10Mbit/s for Flexible Data Rate format.
The Controller Area Network (CAN) is a serial communications protocol which efficiently supports distributed real-time control with a very high level of security. The new Flexible Data Rate frame format introduced in ISO 11898:2015 Part 1 allows higher data rates and larger payloads per frame.
Its domain of application range from high speed networks to low cost multiplex wiring. In airborne and automotive industries, electronic control units, sensors, and actuators are connected using CAN.
The CAN FD Controller has been developed to DAL A according to the DO-254 / ED-80 and is accompanied by a Certification Kit. For lower DAL levels reduced documentation sets are available. The core is also available as encrypted source code for DAL D projects or projects not requiring DO-254 compliance.
Implementation Details
The following tables show some examples of implementing the CAN FD Controller in different technologies and devices. Note that the CAN FD Controller is technology independent, and therefore it can be implemented in any technology/device as long as it contains enough resources (Flip-Flops, gates, pins, etc.).
Unless otherwise specified all the runs have been performed with the default options of the respective tool. Register placement on the IO has been disabled.
No constraints were added, so the results listed under the column “Maximum ‘clk’ Frequency” are the worst case scenario (no multicycle, false paths, etc. defined).
The results are provided for a CAN FD Core is without TMR (Triple Module Redundancy). If TMR is used the number of registers will be triplicated, the combinatorial logic will also increase and there might be a penalty on the Maximum ‘clk’ Frequency.
MICROSEMI
| FPGA Type | Maximum ‘clk’
Frequency |
LUTs used | FFs used | Interface
LUTs used |
Interface
FFs used |
|---|---|---|---|---|---|
| IGLOO2
(M2GL025T) |
116 Mhz | 7587 | 3026 | 36 | 36 |
| PolarFire
(MPF100T) |
144 Mhz | 7557 | 3027 | 12 | 12 |
XILINX
| FPGA Type | Maximum ‘clk’
Frequency |
LUTs used | FFs used |
|---|---|---|---|
| Spartan 7
(XC7S100FGGA676-1) |
98 Mhz | 5000 | 3067 |
| Zync UltraScale+
(XCZU2EG-SFVA625-1) |
157 Mhz | 4901 | 3066 |
Note: some files may require an NDA depending on provider policy.
