Vendor: XtremeSilica Category: Displayport

DisplayPort - Validates high-quality video and audio transmission for displays

DisplayPort is a high-performance digital display interface designed for connecting computers, monitors, and other video devices.

Contact Provider Request Datasheet

Overview

DisplayPort is a high-performance digital display interface designed for connecting computers, monitors, and other video devices. It supports high-definition and ultra-high-definition displays, offering top-tier video and audio transmission.

In Verification IP (VIP), DisplayPort ensures the accurate functioning of display controllers, validating the transmission of video and audio data. VIP verifies compliance with DisplayPort standards, ensuring seamless integration with a wide range of devices.

Key features

  • High-Resolution Support: Handles ultra-high-definition resolutions like 4K and 8K, ensuring high-quality video output even for demanding applications. It provides clear, sharp visuals for the latest display technology.
  • Data Integrity Verification: Ensures no data loss during transmission by checking for errors that could compromise video quality. This feature maintains the reliability of the video signal, preventing glitches or distortions.
  • Multiple Stream Support: Simultaneously transmits multiple video streams over a single connection, supporting multi-monitor setups and reducing cable clutter. It ensures that video data for different displays is synchronized.
  • Link Bandwidth Validation: Ensures that the DisplayPort link has sufficient bandwidth to handle high-resolution and high-refresh-rate video, providing the necessary data rates for modern displays. This feature is crucial for smooth, uninterrupted video playback.
  • Backward Compatibility Testing: Verifies compatibility with older DisplayPort versions, ensuring that newer devices can connect and work seamlessly with legacy displays. This reduces compatibility issues and supports a wider range of devices.

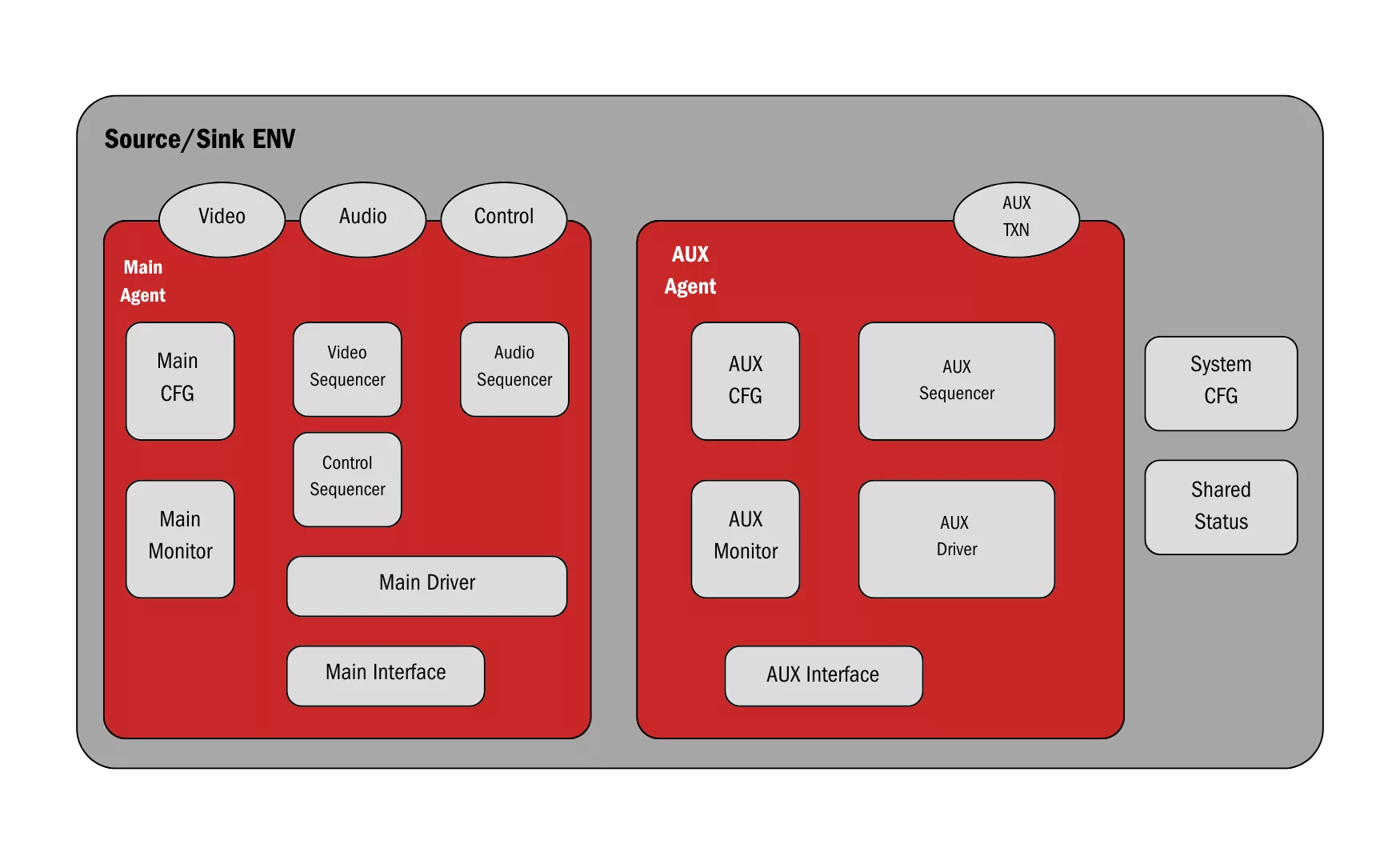

Block Diagram

DisplayPort block diagram

Specifications

Identity

Part Number
DisplayPort
Vendor
XtremeSilica
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

XtremeSilica
HQ: India
Contact XtremeSilica
