What is DisplayPort 1.2 Receiver?
DisplayPort 1.2 Receiver is a Displayport IP core from Nano Silicon listed on Semi IP Hub.
Vendor:
Nano Silicon
Category:
Displayport
DisplayPort 1.2 Receiver
Key features
- Compliant with DisplayPort Standard 1.2
- Main Link supports 1, 2 or 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
- Enhanced Framing Mode support
- Integrated High-bandwidth Digital Content Protection (HDCP) version 1.4
- Integrated Audio Clock Regeneration
- Deep-Color mode support up to 48-bit RGB/YCbCr Digital Video Output with selectable edge clocking
- Power-down modes
- 2.5V I/O
- Panasonic 65 nm process

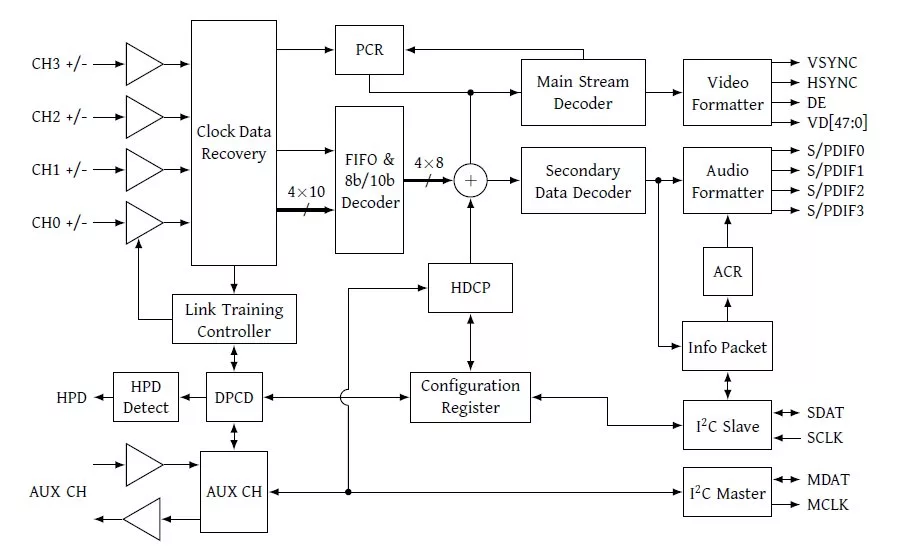

Block Diagram
DP1.2_RX block diagram
Applications
- LCD TV
- HDTV
- Projectors
- Legacy Converter
Specifications
Identity
Part Number
DP1.2_RX
Vendor
Nano Silicon
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
