Digital Down Converter with configurable Decimation Filter
The DDC_DEC IP Core is a complex-valued digital down converter with a configurable number of decimation stages.
Overview
The DDC_DEC IP Core is a complex-valued digital down converter with a configurable number of decimation stages. The design is ideal for high sample-rate applications and permits a digital input signal to be mixed-down and re-sampled at a lower data rate. The DDC_DEC is suitable for the down-conversion of any digitally modulated signal to baseband or other intermediate frequencies.
The IP Core features a high-precision 16-bit DDS oscillator for the digital mixing stage. This oscillator is fully programmable and offers excellent phase and frequency resolution. The digital mixing stage is a complex multiplier that allows the mixing of both real and imaginary (I/Q) inputs. If only real inputs are required, then the imaginary input (q_in) should be tied low.
The output decimation stage features a configurable decimate-by-2N poly phase filter for both I and Q channels. Each filter stage is highly optimized to use only 12 multipliers while still achieving 80 dB of stop band attenuation.
The design features two clock-enable signals. The signal en is the global clock-enable and may be used to enable/disable sampling for the whole circuit. The output clock-enable signal en_out is only asserted when the decimated output samples are active. For instance, when decimating by a factor of 2, then this signal will have a 50% duty cycle. When decimating by a factor of 4 it will have a 25% duty cycle and so on.
Key features
- Synthesizable, technology independent IP Core for FPGA, SoC and ASIC
- 16-bit signed input/output data samples
- Digital oscillator with > 100 dB SFDR
- Digital oscillator phase resolution of 2π/216
- Digital oscillator frequency resolution of Fs/232
- Integrated FIR decimation filter with configurable decimation factors from 0 to 2N
- Highly optimized design requiring only 12 multipliers per decimate-by-2 stage
- Each decimate-by-2 filter stage has 80 dB of stop-band attenuation
- Typical sample rates of 300 MHz+ on low-cost FPGAs and SoCs
Block Diagram

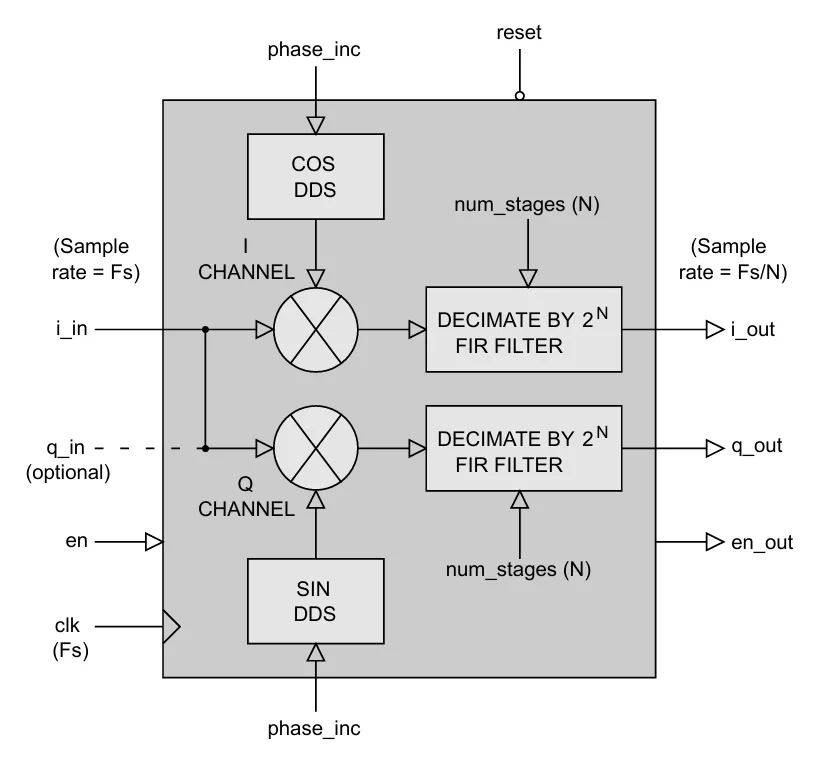

DDC_DEC block diagram
Applications
- Digital I/Q Demodulators
- Compatible with any digital modulation scheme e.g: FSK, PSK, QAM, WiMAX, WCDMA, COFDM etc.
- Conversion of IF signals to baseband frequencies for subsequent processing
