12-bit, 5 MSPS ADC with 8:1 Input Mux in 6nm CMOS
Overview

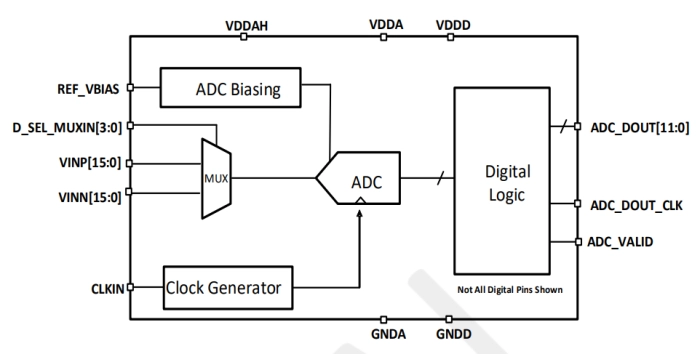

The ODT-ADS-12B5M-6 is an ultra low-power ADC designed in a 6nm process. This 12-bit, 5MSPS ADC supports input signals up to 1 MHz and features 1.8V single ended input range with excellent static and dynamic performance. The input front-end includes a 8:1 mux.
Key Features
- Ultra low-power ADC
- 12-bit ADC resolution
- Sampling rate up to 5MSPS
- Differential input signal
- SNDR up to 65dB
- SFDR up to 72dBc
- Selectable 8:1 inputs
- Fully specified from -40C to 125C
Benefits
- High Performance Low Power, Low Area
Applications
- System Monitoring
- IOT
Deliverables
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Integration and Customer Support
Technical Specifications
Foundry, Node
6nm, 7nm TSMC
Maturity
In Development
Availability
Contact Vendor
TSMC
Pre-Silicon:
6nm
