Synopsys Tapes Out SLM PVT Monitor IP on TSMC N5 and N3E Processes
Rohan Bhatnagar, Staff Product Manager, Synopsys EDA Group
Vendor:
Analog Bits Inc.
Category:
PVT Monitor
Core Powered PVT Sensor on TSMC CLN5A
The Core Powered PVT Sensor is an easy to integrate macro, requiring no analog power supply, and can be placed anywhere on a chip.
Overview
The Core Powered PVT Sensor is an easy to integrate macro, requiring no analog power supply, and can be placed anywhere on a chip.
This highly integrated macro monitors process, voltage, and temperature variation on-chip, allowing very high precision even in untrimmed usage. Itconsumes very little power even in operational mode, and leakage power only when measurement is complete. An additional voltage sample mode is included allowing for supply voltage monitoring, and process monitor mode to assess transistor performance. The block includes a simple- to-use digital interface that works with standard core and IO level power supplies. The macro uses core and thick-oxide (1.2V and 1.2V-OD-1.5V) devices, operated on a core level power supply.
This macro is designed for Automotive (AEC-Q100) Grade 2 operation.
Block Diagram

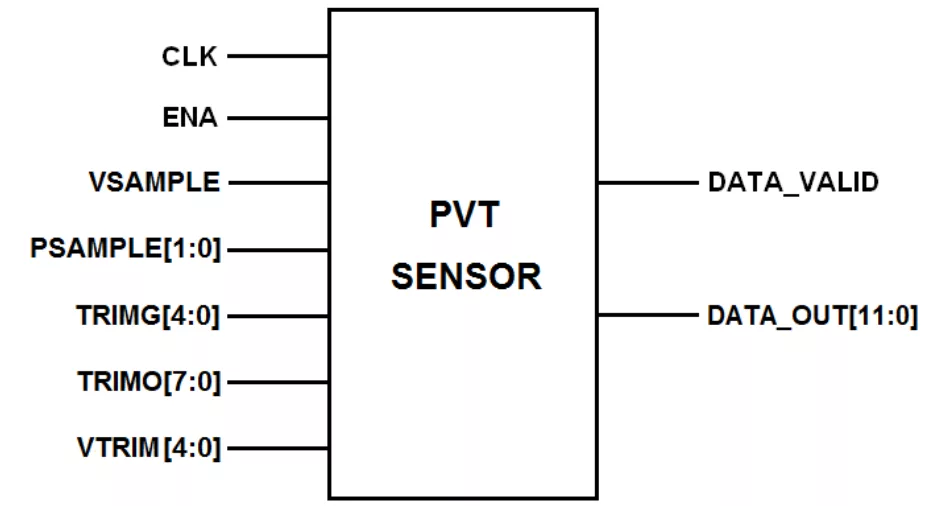

Core Powered PVT Sensor on TSMC CLN5A block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 5nm | N5A | — |
Specifications
Identity
Part Number
Core Powered PVT Sensor on TSMC CLN5A
Vendor
Analog Bits Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
Learn more about PVT Monitor IP core
The Growing Importance of PVT Monitoring for Silicon Lifecycle Management
At the recent IPSoC Conference in Silicon Valley, Rohan Bhatnagar gave a talk on the growing importance of PVT Monitoring for effective SLM. Rohan is the product manager for Synopsys’s SLM PVT Monitor IPs. A synthesis of the salient points from his talk follows.
Let's Talk PVT Monitoring: AVS & DVFS
Let's Talk PVT Monitoring: Process Detection & Variability
Let's Talk PVT Monitoring: Supply Monitoring on 28nm & FinFET - The Challenges Posed
Let's Talk PVT Monitoring: Thermal Issues Associated with Modern SoCs - How Hot is Hot?
Ramsay Allen
Frequently asked questions about PVT Monitor IP cores
What is Core Powered PVT Sensor on TSMC CLN5A?
Core Powered PVT Sensor on TSMC CLN5A is a PVT Monitor IP core from Analog Bits Inc. listed on Semi IP Hub. It is listed with support for tsmc.
How should engineers evaluate this PVT Monitor?
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this PVT Monitor IP.
Can this semiconductor IP be compared with similar products?
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
