Vendor: Lattice Semiconductor Corp. Category: Channel Coding

Convolutional Encoder

Convolutional encoding is a process of adding redundancy to a signal stream.

Contact Provider Request Datasheet

Overview

Convolutional encoding is a process of adding redundancy to a signal stream. Lattice's Convolutional Encoder core is a parameterizable core for convolutional encoding of a continuous input data stream. The core allows variable code rates, constraint lengths and generator polynomials. The core also supports puncturing. Puncturing enables a large range of transmission rates and reduces the bandwidth requirement on the channel.

Key features

  • Parameterizable continuous convolutional encoder
  • Available for ORCA Series 4 FPGA and FPSC devices.
  • Parameterizable constraint length from 3 to 12
  • Parameterizable convolutional codes
  • Parameterizable puncture codes
  • Puncturing input rates from 2 to 12
  • Puncturing output rates from 2 to 23

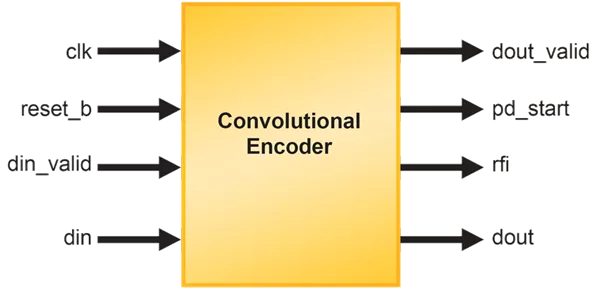

Block Diagram

CONV-ENCO block diagram

Specifications

Identity

Part Number
CONV-ENCO
Vendor
Lattice Semiconductor Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Lattice Semiconductor Corp.
