Controller IP for PCI Express 7.0
The configurable and scalable Controller IP for PCI Express® (PCIe®) 7.0 supports all required features of the PCI Express 7.0 sp…
Overview
The configurable and scalable Controller IP for PCI Express® (PCIe®) 7.0 supports all required features of the PCI Express 7.0 specification, and can be configured by the user to support Endpoint (EP), Root Port, Dual Mode (DM), or Switch Port (SW) applications. The low-latency controller with MultiStream architecture allows a full 128GT/s x16 lane bandwidth with support for up to 1024-bit data paths, while enabling timing closure at 1GHz and 2GHz. The controller can ensure optimal flow with multiple sources and in multi-virtual channel implementations. Support for host, device, and dual mode enables early interoperability in absence of available 7.0 hosts and interop partners. Designers can achieve maximum throughput for Arm-based SoCs with the controller’s support for the Arm AXI and for advanced host features including deferrable memory writes. The controller's reliability, availability and serviceability (RAS) features enhance data integrity, simplify firmware development and improve link bring-up.
Key features
- Supports all required features of the PCI Express 7.0 (128 GT/s) specification
- Allows a full 128GT/s x16 lane bandwidth with up to 1024-bit data path implementations
- Supports advanced RAS data protection features including ECC
- Advanced RAS-DES features for simplified bring-up and debug
- Supports the Synopsys native interface or the optional Arm® AMBA® 5/4/3 AXI application interface
- Configurable for low power, small area and low latency
- Enables efficient embedded DMA applications with Synopsys HyperDMA™
- Standards-compliant Integrity and Data Encryption (IDE) Security Module protects data transfers over PCIe 7.0 interfaces
- TDISP support for PCIe for SR-IOV and hardware security via IDE
- New vectored interface for Switch Port controllers optimizes dataflow
- Supports Arm Confidential Compute Architecture (CCA) Host TEE

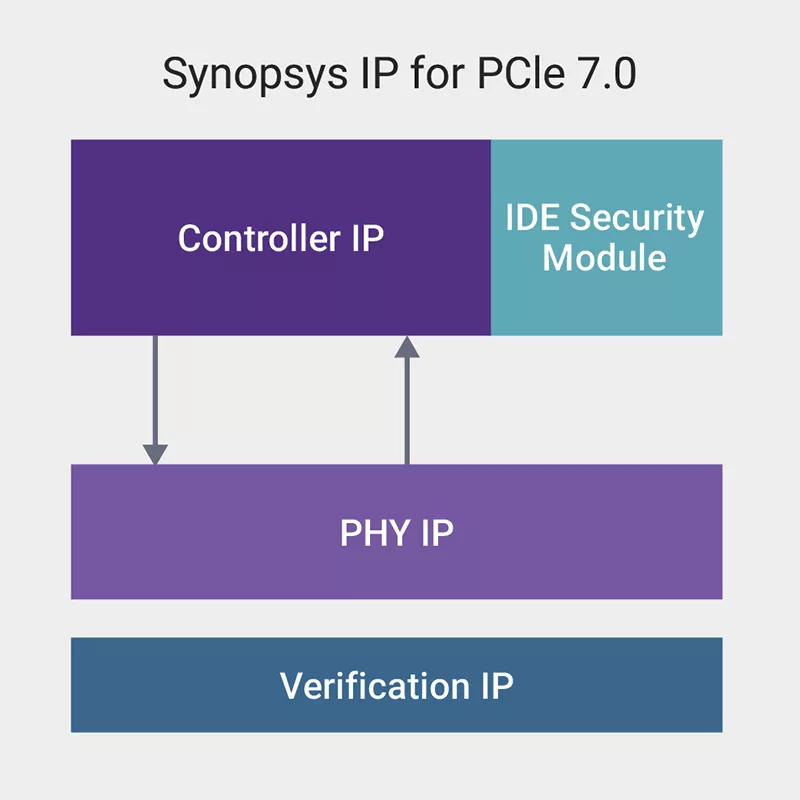

Block Diagram
dwc_pcie7_controller block diagram
Specifications
Identity
Part Number
dwc_pcie7_controller
Vendor
Synopsys, Inc.
Type
Silicon IP
Standards & Interfaces
PCIe Version
PCIe 7.0
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
