Vendor: Noesis Technologies Category: Channel Coding

Configurable Reed Solomon Encoder

A fully configurable Reed Solomon Encoder compliant with the requirements of nearly all modern standards that use Reed-Solomon er…

TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

A fully configurable Reed Solomon Encoder compliant with the requirements of nearly all modern standards that use Reed-Solomon error correction.

Key features

  • Fully parameterized Reed Solomon Encoder.
  • Adaptive code rate can be varied on the fly.
  • Shortened codes support.
  • Parameterized bits per symbol, codeword length and parity bytes.
  • Parameterized generator and primitive polynomial.
  • Burst or streaming decoding support.
  • Various architectures for different gate count/speed combinations.
  • Fully synchronous design using a single clock.

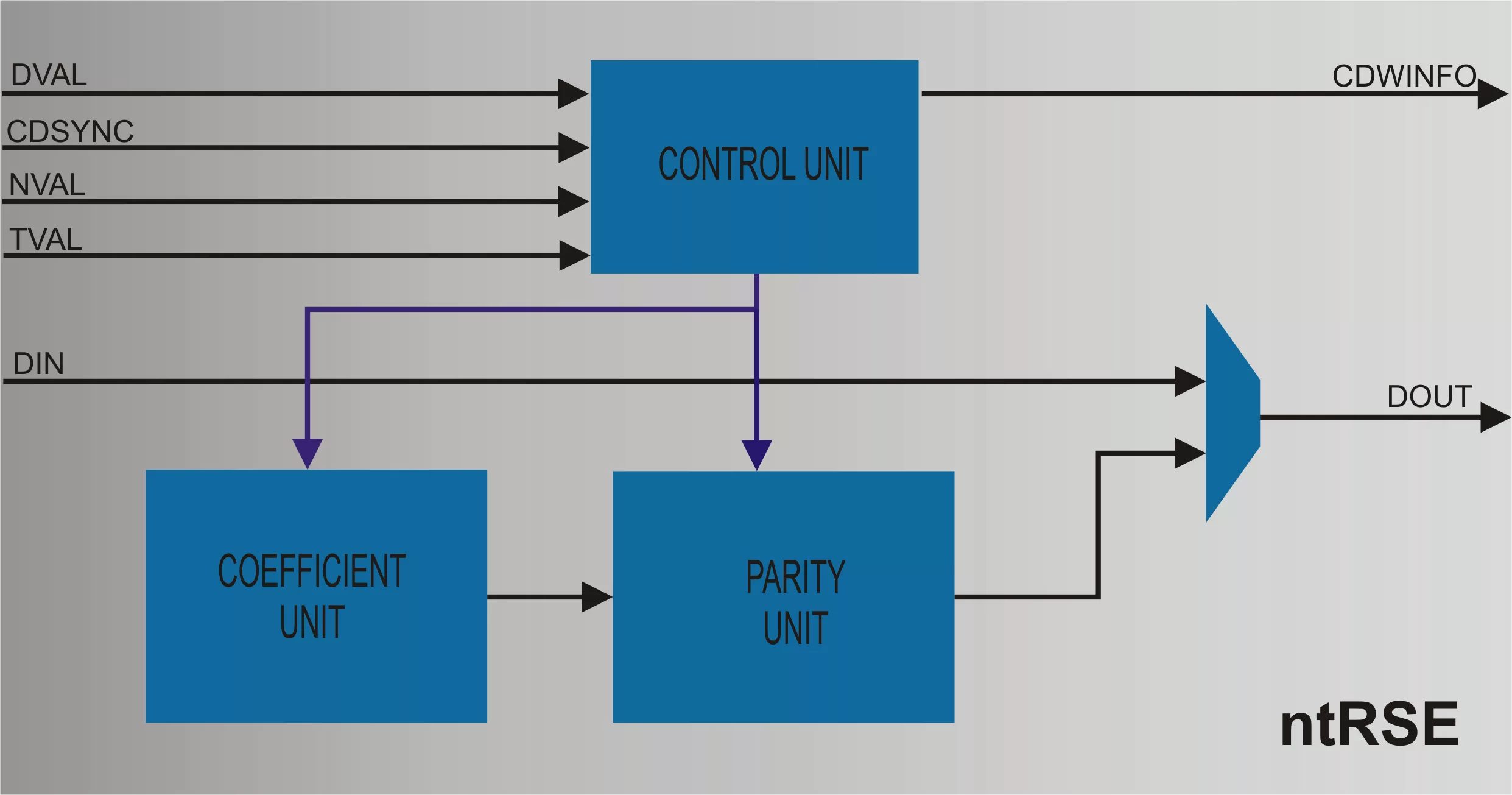

Block Diagram

ntRSE block diagram

What’s Included?

  • Synthesizable VHDL or Verilog code.
  • C++ model for system simulation.
  • Comprehensive test bench.
  • Detailed user's guide.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven

Specifications

Identity

Part Number
ntRSE
Vendor
Noesis Technologies
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Noesis Technologies
HQ: Greece
