Vendor: Chips&Media, Inc. Category: Video Processing

Video codec - AVC, MVC, MPEG-4, VC-1, MPEG-2, H.263, AVS Jizhun, AVS+ Guangdian, On2 VP8, Sorenson Spark, Theora

Supported Standards Decoder : AVC, MVC, MPEG-4, VC-1, MPEG-2, H.263, AVS Jizhun, AVS+ Guangdian, On2 VP8, Sorenson Spark, Theora …

Contact Provider Request Datasheet
H.264 / AVC + 3 View all specifications

Overview

Supported Standards

  • Decoder : AVC, MVC, MPEG-4, VC-1, MPEG-2, H.263, AVS Jizhun, AVS+ Guangdian, On2 VP8, Sorenson Spark, Theora
  •  Encoder  AVC, MVC, MPEG-4, H.263

Performance

  • Single-stream: HD 30fps@133MHz
  • Multi-stream: FHD/HD 30fps@266MHz

Key features

  • Supports up to 4K30fps
  • Multi-view Video Coding for Blu-ray 3D
  • Full coverage of stream on a web browser
  • Multi-level clock gating
  • Low host CPU resources under 1MIPS
  • Frame buffer compression
  • Low delay coding
  • Multi-instances
  • Burst-write-back (BWB)
  • On-the-fly down-scaler
  • MapConverter

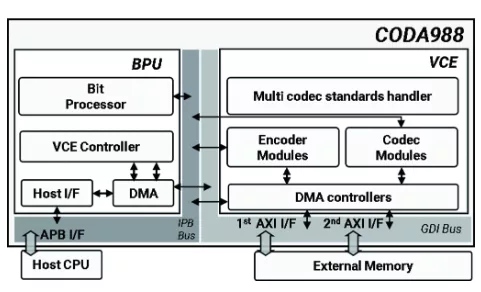

Block Diagram

CODA988 block diagram

Applications

  • Home entertainment,
  • multimedia

Specifications

Identity

Part Number
CODA988
Vendor
Chips&Media, Inc.
Type
Silicon IP

Compute

Codec Standard
H.264 / AVC , MPEG-2 , MPEG-4 , VP8

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Chips&Media, Inc.
HQ: Rep of Korea
Contact Chips&Media, Inc.
