Certified USB 5G & 10G Dual Mode Controller
USB 5G, 10G Dual Mode controller is a configurable core and implements the USB Host functionality or USB Device functionality sel…
Overview
USB 5G, 10G Dual Mode controller is a highly configurable core and implements the USB Host functionality or USB Device functionality selectable via a register or an external pin. The host/device core can be interfaced with third party USB PHY.
The Dual mode controller supports Host functionality using high performance DMA engine based on xHCI specification exposing either an AHB or AXI interface. The host mode core can be configured to support full fledged xHCI implementations for use in standard PCIe-USB bus adaptors/chip sets or be configured with a subset of features for embedded applications requiring limited host functionality. The dual mode controller supports Device functionality which operates in a cut through mode exposing a native packet interface or exposes either an AHB or AXI interface and including a high performance proprietary DMA engine.
The Dual Mode Controller core is carefully partitioned to support standard power management schemes which include extensive clock gating and multiple power wells for aggressive power savings required for mobile and handheld applications.
The controller has a very simple application interface which can be easily adapted to standard on-chip-bus interfaces such as AXI, AHB, OCP as well as other standard off-chip interconnects making it easy to be integrated in a wide range of applications.
The Dual mode controller supports Host functionality using high performance DMA engine based on xHCI specification exposing either an AHB or AXI interface. The host mode core can be configured to support full fledged xHCI implementations for use in standard PCIe-USB bus adaptors/chip sets or be configured with a subset of features for embedded applications requiring limited host functionality. The dual mode controller supports Device functionality which operates in a cut through mode exposing a native packet interface or exposes either an AHB or AXI interface and including a high performance proprietary DMA engine.
The Dual Mode Controller core is carefully partitioned to support standard power management schemes which include extensive clock gating and multiple power wells for aggressive power savings required for mobile and handheld applications.
The controller has a very simple application interface which can be easily adapted to standard on-chip-bus interfaces such as AXI, AHB, OCP as well as other standard off-chip interconnects making it easy to be integrated in a wide range of applications.
Key features
- Host functionality is compliant with xHCI Rev1.0
- Compliant with USB 5G 10G Specification Rev1.0
- Compliant with USB Specification Rev 2.0
- Compliant with USB2 Link Power Management
- Supports Aggressive Low Power Management
- Configurable core frequency: 125, 250, 500 Mhz.
- Configurable PIPE Interface for USB3.0 PHY: 8, 16, 32 bit.
- Configurable USB2 PHY Interface : 8/16 bit UTMI, 8-biot ULPI interface
- Optional DMA engine for device mode functionality.
- Optional endpoint zero processor block for processing standard requests for device mode functionality
- Flexible User Application Logic
- Can be adapted by any SoC / OCB interface / offchip interconnects – such as AHB, AXI, PCIe
- Configurable Datawidth: 32, 64, 128 bit
- Optional native packet interface
- Simple Register Interface for internal Register Access – AHB Slave or GDA PBUS Interface
- Pin or register bit to select between host/device
- Highly modular and configurable design
- Layered architecture
- Fully synchronous design
- Supports both sync and async reset
- Clearly demarked clock domains
- Extensive clock gating support
- Multiple Power Well Support
- Software control for key features
- Multiple loop backs for debug
Block Diagram

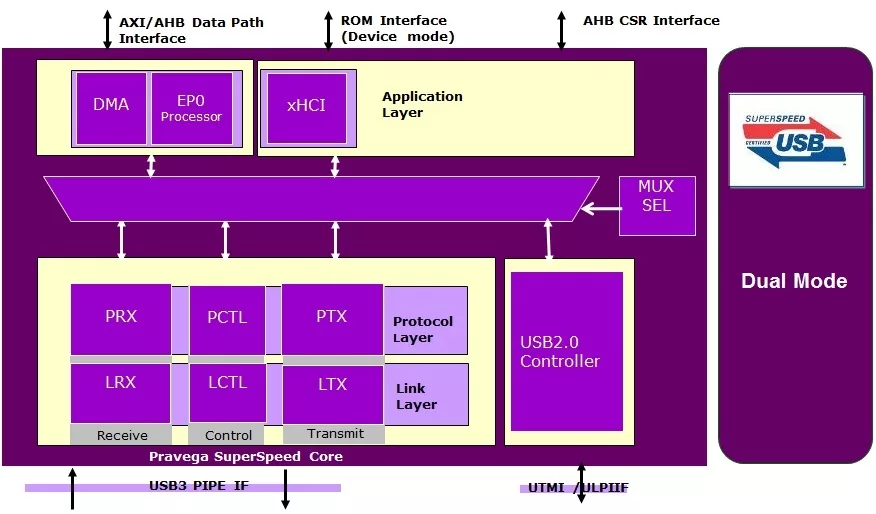

usb_dual_mode block diagram
Benefits
- Optional USB2.0 Core for Backward Compatibility
- Application Interface – AHB, AXI, PCIe
- Configurable Buffer Sizes
- xHCI Engine with configurable number of device slots, interrupters, interrupt moderation, configurable scratchpad support, optional support for host initiated stream data movement and optional debug capability etc
- Device mode with configurable number of endpoints, configurable endpoint types, including support for bulk streaming endpoints, optional endpoint zero processor block, optional proprietary descriptor based DMA engine with configurable endpoint FIFOs.
What’s Included?
- Configurable RTL Code
- HDL based test bench and behavioral models
- Test cases
- Protocol checkers, bus watchers and performance monitors
- Configurable synthesis shell
- Design Guide
- Verification Guide
- Synthesis Guide
Specifications
Identity
Part Number
usb_dual_mode
Vendor
PRSsemicon Group
Type
Silicon IP
Provider
HQ:
India
