Overview

The CCSDS-122-E encoder core from Alma Technologies is a complete and self-contained implementation of the CCSDS122.0-B-1 image data compression standard. The encoder accepts the uncompressed image data in standard raster scan pixel order and outputs standalone and fully compliant CCSDS 122.0-B-1 byte-stream format. The CCSDS-122-E is designed for enabling high-rate data compression, with low resource usage, in both FPGA and ASIC implementations, while also not needing an external memory device for its operation.

The CCSDS 122.0-B-1 standard fits the compression requirement for a wide range of spaceborne two-dimensional spatial image data. In these applications the requirement is for a scalable data reduction, with the option to use lossless or lossy compression, using a memory-efficient and reduced complexity algorithm that results in a fast, low-power and compact hardware implementation. The Alma Technologies CCSDS-122-E encoder implementation realizes all these expected benefits and supports both lossless and lossy compression with a pixel dynamic range of up to 16 bits.

The CCSDS 122.0-B-1 standard was developed to balance between compression performance and complexity. Similar to JPEG 2000, it utilizes a two-dimensional Discrete Wavelet Transform (DWT) for image data decorrelation. CCSDS 122.0-B-1 uses a 9/7 integer DWT for the lossless compression, while a 9/7 float DWT is also specified for improved lossy compression efficiency, especially at low bit-rates. Both DWT options are available by the CCSDS-122-E core. For complete control by the application of the lossy compression ratio, the CCSDS-122-E includes also the optional rate control functionality that is provisioned by the standard. Compared to JPEG 2000, CCSDS 122.0-B-1 achieves similar lossless and lossy compression efficiency.

The CCSDS-122-E is designed with simple, fully controllable and FIFO-like, streaming input and output interfaces. The CCSDS-122-E is a complete and autonomous encoder, not needing any host system CPU or GPU support for its operation. Being carefully designed and rigorously verified, the CCSDS-122-E is a reliable and easy-to-use and integrate IP.

Key features

  • CCSDS 122.0-B-1 Compliant, Complete and Standalone Operation
    • Full compliance to the CCSDS 122.0-B-1 specification
    • Numerically lossless or lossy compression
    • Up to 16 bits pixel dynamic range
    • Both integer and float 9/7 DWT
    • Integrated rate control
    • Operation without external memory
    • CPU/GPU-less, complete and standalone implementation
  • Smooth System Integration
    • Full abstraction of the internal implementation and CCSDS122.0-B-1 details from the top level I/O and its operation
    • Simple, microcontroller like, programming interface
    • High-speed, flow controllable, streaming I/O data interfaces
    • Simple and FIFO like
      • Avalon-ST compliant (ready latency 0)
      • AXI4-Stream compliant
    • Designed for both FPGA and ASIC implementations with user configurable architecture before synthesis
      • Configurable maximum supported image width
      • Configurable maximum supported pixel dynamic range (up to 8-, 12- or 16-bit)
      • Configurable DWT filter(s)
        • Integer only
        • Float only
        • Both integer and float
      • Trouble-Free Technology Map and Implementation
        • Fully portable, self-contained RTL source code
        • Strictly positive edge triggered design
        • D-type only Flip-Flops
        • Fully synchronous operation
          • No special timing constraints needed
          • No false or multi-cycle paths

Block Diagram

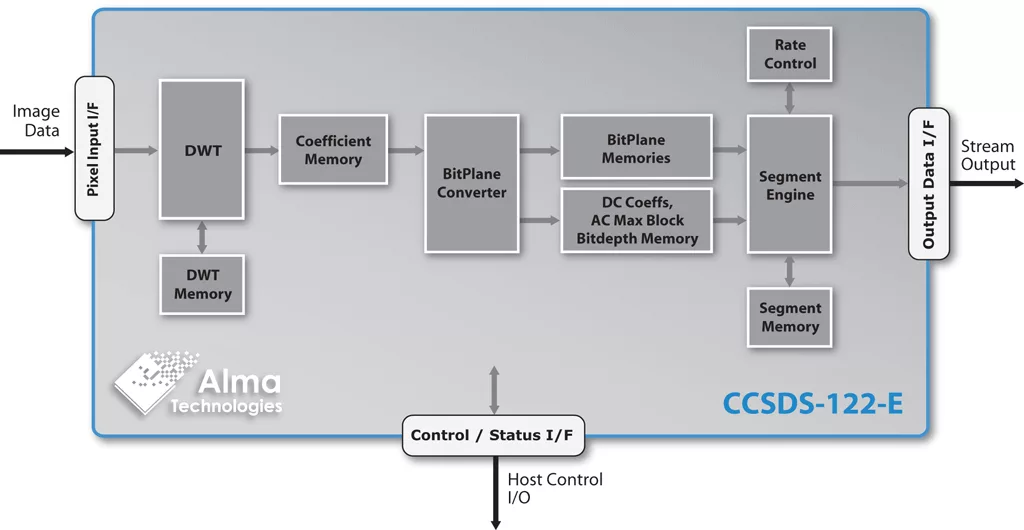

CCSDS-122-E block diagram

What’s Included?

  • Clear text self-contained VHDL RTL source for ASIC designs, or pre-synthesized & verified Netlist for Altera, Lattice, Microsemi and Xilinx FPGA and SoC devices
  • Release Notes, Design Specification and Integration Manual documents
  • Bit Accurate Model (BAM) and test vector generation binaries, including sample scripts
  • Self checking testbench environment, including sample BAM generated test cases
  • Simulation and sample Synthesis (for ASICs) or Place & Route (for FPGAs) scripts

Specifications

Identity

Part Number
CCSDS-122-E
Vendor
Alma Technologies
Type
Silicon IP

Files

Product Sheet Download
