Vendor: Logic Fruit Technologies Category: CAN / CAN-FD / CAN-XL

CAN Controller

A Controller Area Network (CAN) is a serial half duplex and differential two-wired asynchronous communication protocol that allow…

Contact Provider Request Datasheet

Overview

A Controller Area Network (CAN) is a serial half duplex and differential two-wired asynchronous communication protocol that allows the microcontrollers and other devices to communicate without a host computer. The CAN core is a bus controller that performs communication according to the CAN 2.0B, and CAN FD specifications according to ISO 11898-1.

Key features

  • The CAN BUS protocol is known as message based protocol. In this type of protocol nodes on the bus have no identifying information so it is very easy to insert or delete it from network without any updating on software or hardware systems.
  • CAN provides broadcast message transmission so all nodes in the network can see all transmitted messages and it is nodes decision to accept or filter out.
  • CAN Protocol has many applications in automobile sector, medical devices and industrial automation.

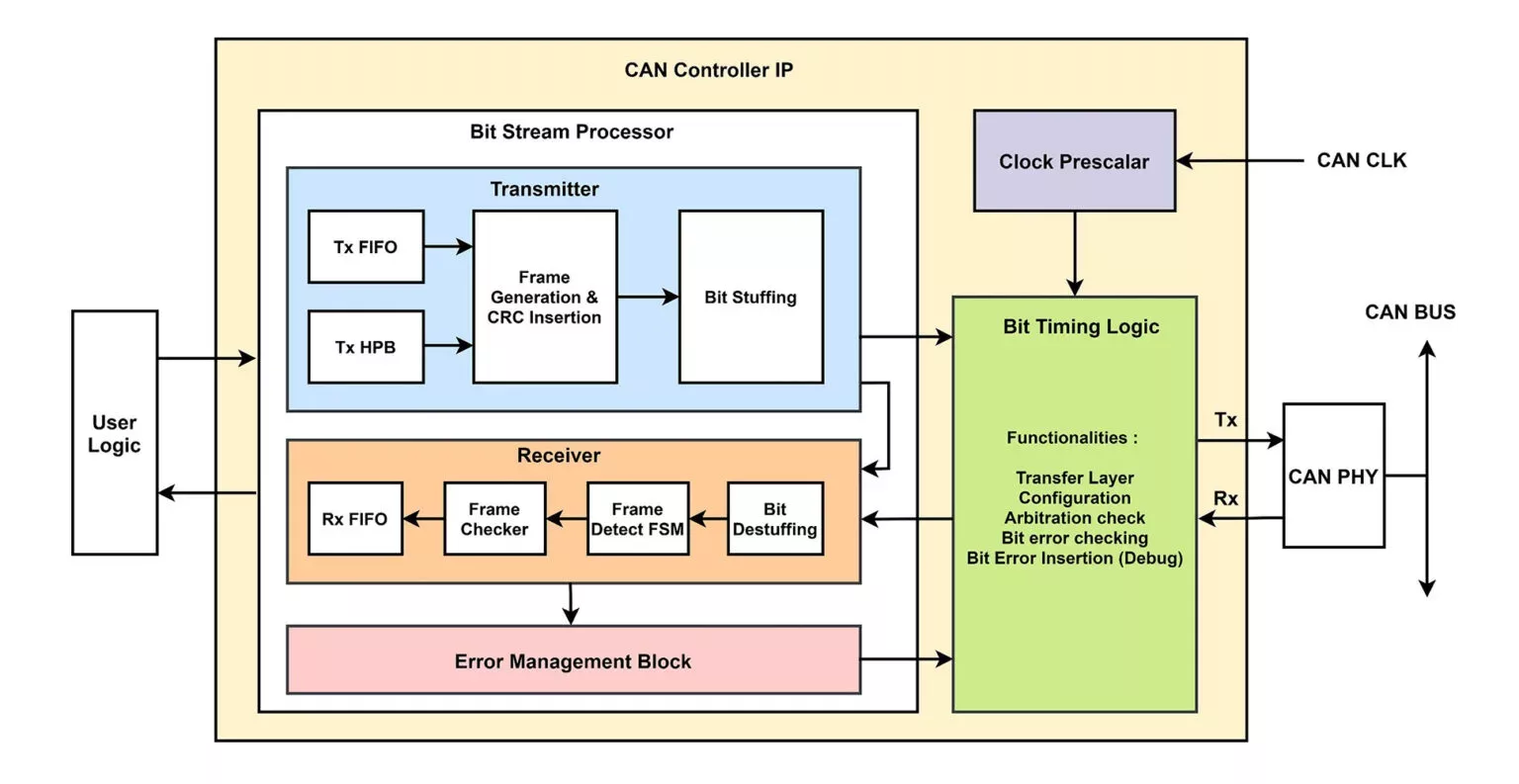

Block Diagram

CAN Controller block diagram

Benefits

  • The CAN BUS protocol is known as message based protocol. In this type of protocol nodes on the bus have no identifying information so it is very easy to insert or delete it from network without any updating on software or hardware systems.
  • CAN provides broadcast message transmission so all nodes in the network can see all transmitted messages and it is nodes decision to accept or filter out.
  • CAN Protocol has many applications in automobile sector, medical devices and industrial automation.

Specifications

Identity

Part Number
CAN Controller
Vendor
Logic Fruit Technologies
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Logic Fruit Technologies

Learn more about CAN / CAN-FD / CAN-XL IP core

CANsec: Security for the Third Generation of the CAN Bus

CANsec is a resource-efficient solution for securing the CAN bus against the most common cyber security threats on software-defined vehicles. Here we show that the encryption and authentication of CAN XL frames are possible without latencies or loss...

Frequently asked questions about CAN / CAN FD / CAN XL IP cores

What is CAN Controller?

CAN Controller is a CAN / CAN-FD / CAN-XL IP core from Logic Fruit Technologies listed on Semi IP Hub.

How should engineers evaluate this CAN / CAN-FD / CAN-XL?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this CAN / CAN-FD / CAN-XL IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
