Bluetooth Dual Mode (Classic & BLE ) v5.3 Protocol Software Stack and Profiles IP

This Bluetooth Dual Mode (BTDM) Software Stack is the most mature and widely used licensed SW Stack in the market for Bluetooth A…

Contact Provider Request Datasheet

Overview

This Bluetooth Dual Mode (BTDM) Software Stack is the most mature and widely used licensed SW Stack in the market for Bluetooth Audio (Dual Mode) and IOT (Low Energy) products today. The stack has been licensed by many companies including the Bluetooth Special Interest Group (BT SIG) for use in the Bluetooth Profile Tuning Suite (PTS). Customers use this Bluetooth SW Stack in both Audio Dual Mode (DM) & Low Energy (LE) v5.4 SoCs, maintaining a common SW code base across all products, enabling common customer support, and commonality of features, through a simple compiler option.
This Bluetooth Dual Mode SW Stack implements the complete Bluetooth v5.4 LE Audio Profiles and Services including but not limited to HAP, TMAP, Generic Audio Framework (MCP, CCP), Common Audio Profile (VCP, AICS), BAP, etc.

The SW is equipped with Advanced Codec Support for Audio Streaming using A2DP, LC3, SBC, mSBC & 3rd Party codecs (MP3, AAC, etc.). The Bluetooth Dual Mode Protocol Stack SW & Profiles have been optimized for TWS applications supporting different TWS implementations both the TWS relay method & TWS Sniffing method. The Software enables customers to reduce the market risk of integrating Bluetooth into the product while accelerating the development cycle.

The large base of customers is testimony to the IP’s high quality, proven reliability, functionality, and portability as per the adopted Bluetooth.

Key features

  • Bluetooth SIG Qualified, Production Proven IP
  • Proven Interoperability
  • Low MIPS and Memory Footprint for Stack & Profiles
  • Platform and Operating Systems (OS) agnostic and is designed for Easy Portability
  • Proven on all popular 32 bit and 16 bit MCUs and a variety of OS
  • Non-Blocking Architecture
  • Compile time options for Feature Configuration

Block Diagram

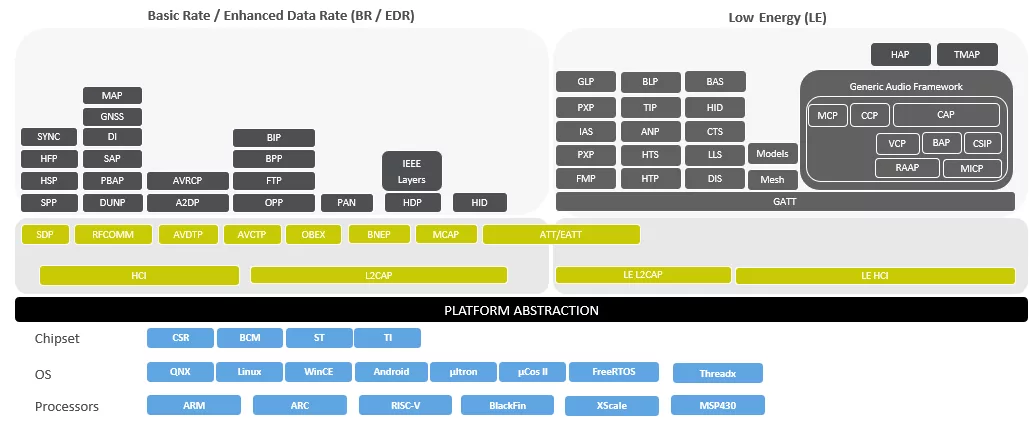

BT Dual Mode v5.4 Software Stack & Profiles IP block diagram

Benefits

  • BT SIG has licensed our stack for integration into the Profile Tuning Suite -Test tool. This ensures that every product will need to prove interoperability against the Mindtree stack for the purpose of qualification
  • Tested for interoperability with more than 200 smart phone models
  • Proven in all UnPlugFests
  • Modules are compile-time configurable
  • Same architecture and codebase across can be ported across Multiple devices
  • Demonstrates the flexibility of the architecture
  • Easy for testing Interoperability across range of devices

Applications

  • TWS earbuds
  • Gaming Headphones
  • Smart Speakers
  • Smartwatches
  • Wearables
  • Smart Remotes
  • Boom Boxes
  • PNDs
  • Low power IOT devices

What’s Included?

  • Source Code of Transport Abstraction Layer and Operating System Abstraction Layer
  • Source Code of sample applications to illustrate the use of APIs
  • API Documents for Smart Mesh Profile and Encryption blocks
  • API Documents for the Transport Abstraction Layer
  • API Documents for the Operating System Abstraction Layer
  • User manual describing how to build and run the sample application

Specifications

Identity

Part Number
BT Dual Mode v5.4 Software Stack & Profiles IP
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
Contact T2M GmbH
