Bandgap Voltage Reference (0.6V and 0.8V References)

1-VIA’s VSCOM4l400ABG IP is a 1.8V low-noise unbuffered programmable 0.6 and 0.8V Bandgap Voltage References (BGR) with eight 50u…

TSMC 16nm View all specifications

Overview

1-VIA’s VSCOM4l400ABG IP is a 1.8V low-noise unbuffered programmable 0.6 and 0.8V Bandgap Voltage References (BGR) with eight 50uA reference output currents implemented in TSMC12/16nm CMOS FinFET technology.

Its low noise, flat temperature characteristics and precision make it suitable for both integrated global and local voltage references.

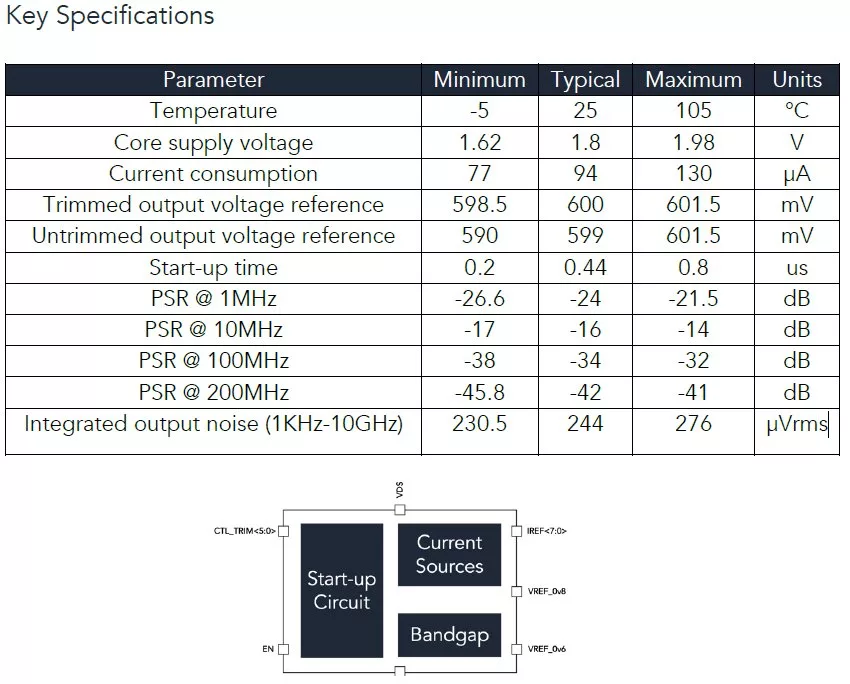

Block Diagram

VSCOM4l400ABG block diagram

Applications

Analogue-to-Digital Converter (ADC)
Low-Dropout Regulators (LDO)
RF ASICs
Digital-to-Analog Converter (DAC)
Mixed-signal ASICs
SoCs

What’s Included?

Datasheet
Characterization report
Layout view (GDSII)
Abstract view (LEF)
Behavioural model (VerilogA)
Integration guidelines and support

Silicon Options

Foundry	Node	Process	Maturity
TSMC	16nm	16nm 160 nm	—

Specifications

Identity

Part Number

VSCOM4l400ABG

Vendor

1-VIA

Type

Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

1-VIA

HQ: UK
