AXI to UCIe Bridge IP

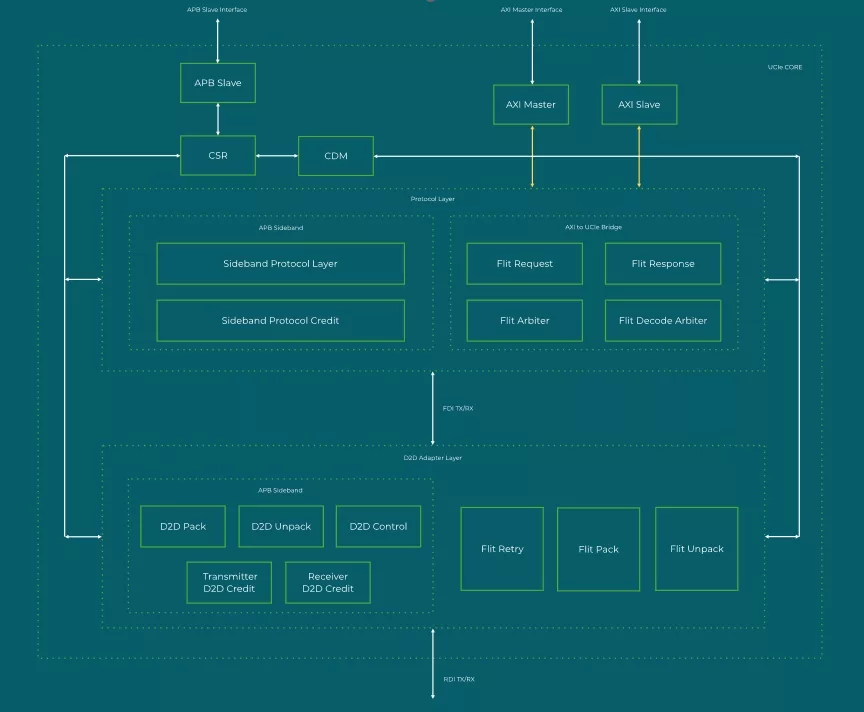

SmartDV’s AXI to UCIe Bridge IP is a silicon-proven, fully featured chiplet interconnect bridge solution purpose-built for SoC and multi-die system designs requiring seamless AXI streaming protocol transport over Universal Chiplet Interconnect Express die-to-die links. Fully compliant with UCIe v3.0 and backward compatible with UCIe v2.0, v1.1, and v1.0, and compliant with ARM AMBA AXI5 (backward compatible with AXI4 and AXI3), it enables AXI streaming protocol traffic to traverse UCIe die-to-die interconnects at speeds up to 64 GT/s, with data bus widths from 8 to 1024 bits and lane configurations of 16, 32, and 64 lanes.

Designed for AI accelerator, HPC chiplet, and data center multi-die architectures where AXI-connected chiplets must communicate efficiently over UCIe streaming protocol links, the IP supports Standard and Advanced Package configurations, all UCIe FLIT formats for streaming protocols, UCIe clock frequencies from 500 MHz to 8 GHz, and the complete UCIe sideband infrastructure including Sideband Mailbox, Retimer support, FLIT Retry, FLIT CRC, and all Vendor Defined Sideband messages. Its two available core variants supporting multiple outstanding requests with simultaneous read/write channel access or single-channel sequential access give chiplet system teams flexible implementation options for diverse AXI streaming use cases.

Built for design flexibility and silicon efficiency, the IP core is highly configurable for both ASIC and FPGA implementations. Its parameterized lane architecture and clean host interface enable fast integration across a wide range of advanced process nodes and chiplet packaging configurations.

Compliance and Compatibility

• Fully compliant with UCIe v3.0 specification (August 2025); backward compatible with UCIe v2.0, v1.1, and v1.0
• Fully compliant with ARM AMBA AXI5; backward compatible with AXI4 and AXI3
• Supports Standard Package and Advanced Package UCIe configurations
• Configurable SoC interface supporting AXI, APB, and custom wrappers for seamless integration
• Compatible with ASIC and FPGA design flows across leading foundry process nodes
• Compatible with all major EDA synthesis, simulation, and linting flows

• Full AXI to UCIe Bridge Functionality – Complete AXI streaming protocol to UCIe die-to-die bridge per UCIe v3.0 and AMBA AXI5 supporting Standard and Advanced Package configurations
• Comprehensive FLIT Format Support – Raw Format, 68B FLIT, Standard 256B End/Start Header, and Latency-Optimized 256B without/with Optional Bytes formats for streaming protocol
• High-Speed Multi-Lane Support – 16, 32, and 64 lane configurations at 4 GT/s through 64 GT/s with UCIe clock frequencies from 500 MHz to 8 GHz
• Configurable AXI Data Bus Width – 8, 16, 32, 64, 128, 256, 512, and 1024-bit AXI data bus width support with separate read and write channels and longer bursts up to 256 beats
• Dual Core Variant Options – Multiple outstanding request with simultaneous read/write access variant and single-channel sequential access variant for flexible deployment
• Comprehensive Sideband Infrastructure – Sideband messaging, Sideband Mailbox, 800 MHz sideband data speed, UCIe Retimer support, FLIT Retry, FLIT CRC, and all Vendor Defined Sideband messages
