Vendor: Chips&Media, Inc. Category: Video Processing

Dual-core video codec - AV1, HEVC, AVC, VP9 (VP9: Decoder only)

WAVE677DV is a 4K/8K multi-standard video codec HW IP that supports AV1, HEVC/H.265, AVC/H.264, and VP9 video codec standards.

Contact Provider Request Datasheet
AV1 + 3 View all specifications

Overview

WAVE677DV is a 4K/8K multi-standard video codec HW IP that supports AV1, HEVC/H.265, AVC/H.264, and VP9 video codec standards. It provides 4K120fps@500MHz, 8K60fps@1GHz, or 4K240fps@1GHz real-time encoding and decoding performance with a dual-core solution.

WAVE677DV is based on WAVE6 architecture which is the latest C&M video architecture. WAVE6 architecture is designed to cover a wide range of requirements from customers who are looking for high-performance and high-quality encoder IP. In order to achieve improved encoding image quality, WAVE6 encoding tools have been enhanced from WAVE5 encoding tools. The additional improvements in WAVE6 architecture are shown in the following as well:

? Improved bandwidth efficiency
? Reduced external memory size & latency during the encoding process
? Competitive IP size & single-clock domain design

WAVE677DV is a favorable video IP solution for edge servers (video transcoding, data center, and video analytics), mobile devices, GPU, automotive, surveillance, AR/VR, and various consumer devices.

Key features

  • 8/10-bit depth
  • I/P/B-frame
  • Frame buffer compression
  • Multi-instances
  • 3rd-party interface (option)
  • Secondary AXI port
  • Color space conversion
  • Bit-depth conversion
  • YUV format conversion
  • Burst-write-back (BWB)
  • Rotate/Mirror for encoder
  • Down-scaler for decoder
  • Crop
  • Sub-frame synchronization (SFS)

Block Diagram

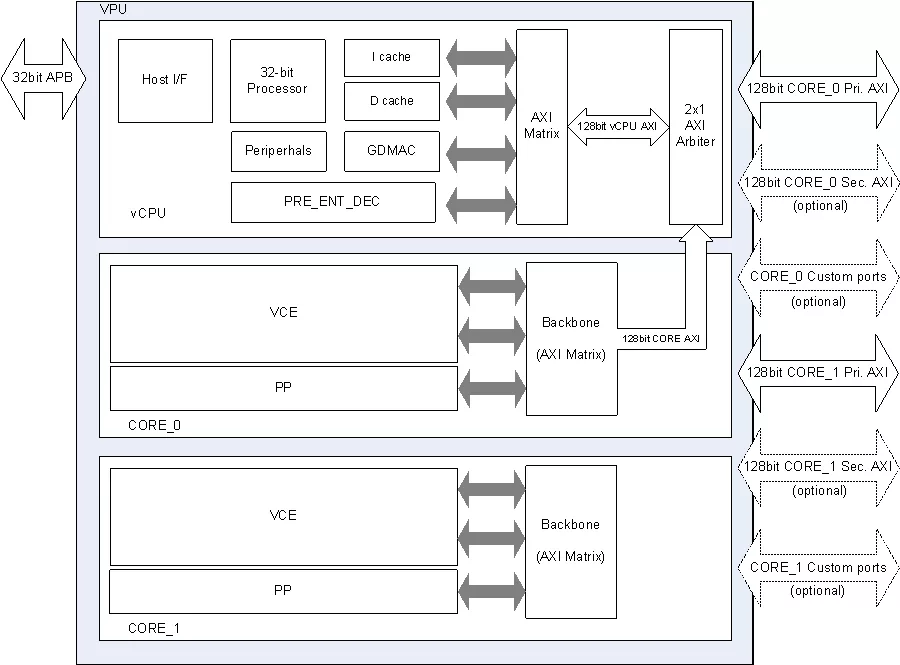

WAVE677DV block diagram

Benefits

  • High-quality encoding
  • Improved bandwidth efficiency
  • Low delay encoding
  • Low power consumption
  • Single-clock domain design
  • Competitive IP size
  • Easy integration of SoC designs
  • Configurable IP

Applications

  • Video conferences
  • Mobile devices
  • GPU
  • Automotive
  • Surveillance
  • AR/VR
  • Consumer devices

What’s Included?

  • RTL source code
  • Datasheet
  • Verification Guide
  • API Reference Manual
  • Programmer's Guide
  • C-model User's Guide

Specifications

Identity

Part Number
WAVE677DV
Vendor
Chips&Media, Inc.
Type
Silicon IP

Compute

Codec Standard
AV1 , H.264 / AVC , H.265 / HEVC , VP9

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Chips&Media, Inc.
HQ: Rep of Korea
Contact Chips&Media, Inc.
