Overview
The Audio CODEC IP is a low power, high resolution, stereo audio solution which leverages Sigma-Delta noise-shaping technology. The ADC, DAC, PGA, and power amplifier are integrated to provide a complete solution. Innosilicon Audio CODEC IP offers reliable solutions for audio signal conversion in high end consumer, automotive, multimedia, and other digital audio systems.

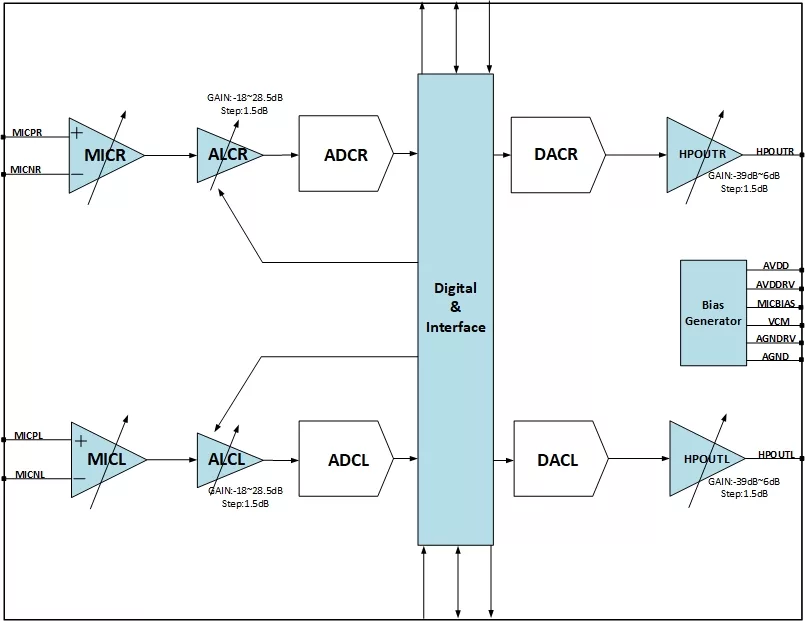

The Audio CODEC IP consists of ADC channels, DAC channels, and bias circuit. The ADC channel is used to convert analog audio signals to digital signals. Each ADC channel contains input PGA, ALC, Sigma-Delta modulator, and digital filter. The DAC channel is used to convert digital audio signals to analog signals. Each DAC channel contains Sigma-Delta modulator, DCT, and power amplifier. The bias circuit generates voltage and current reference.
