Vendor: Rambus, Inc. Category: Symmetric Crypto

AES Key Wrap Accelerators

The AES-IP-37 (EIP-37) is IP for accelerating the AES Key Wrap cipher algorithm (NIST-Key-Wrap & RFC3394) up to 6 Gbps.

Contact Provider Request Datasheet
AES View all specifications

Overview

The AES-IP-37 (EIP-37) is IP for accelerating the AES Key Wrap cipher algorithm (NIST-Key-Wrap & RFC3394) up to 6 Gbps. Designed for fast integration, low gate count and full transforms, the AES-IP-37 accelerator provides a reliable and cost-effective embedded IP solution that is easy to integrate into SoCs that need high speed key wrap and (key) storage or key import and export systems.

How the AES-IP-37 AES Key Wrap Accelerators work

The AES-IP-37 is a family of the cryptographic library elements in the Rambus hardware IP library (formerly of Inside Secure). The accelerators include I/O registers, encryption and decryption cores, and the logic for feedback modes and key scheduling.

Sustained performance ranges from 1 to 6 Gbps depending on the configuration and area. Gate count is between 33K and 62K gates (excluding memory) depending on the configuration. Multiple AES-IP-37 cores can be cascaded.

Key wrap performance of the low gate count version is around 100K key wraps of unwraps (for 80-Byte key data), for the high end it is around 500K to 700K depending on frequency.

Key features

  • Wide bus interface (128-bit data, 256-bit keys) or 32-bit register interface
  • Key/KEK sizes: 128, 192 and 256 bits
  • Includes key scheduling hardware
  • Supported modes: NIST AES Key Wrap
  • Memory interface for key, intermediate and result data storage up to 4096 bits
(Maximum supported input data block size is 512 bytes)

  • Fully synchronous design
  • Low Speed, Medium Speed, High Speed versions
  • Support for two ECC (Error Correcting Code) bits from the external memory
  • Multiple IV loading options

  • Unwrap result verification


  • Alternatives:
    • AES-IP-32 AES ECB accelerators
    • AES-IP-36 AES ECB/CBC/CTR accelerators
    • AES-IP-37 AES Key Wrap accelerators
    • AES-IP-38 AES XTS/GCM accelerators
    • AES-IP-39 AES ECB/CBC/CTR/CCM/GCM accelerators

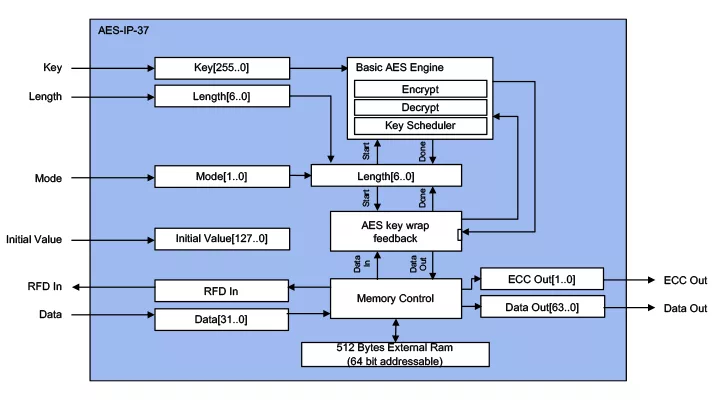

Block Diagram

AES-IP-37 block diagram

Benefits

  • Silicon-proven implementation
  • Fast and easy to integrate into SoCs
  • Flexible layered design
  • Complete range of configurations
  • World-class technical support

Specifications

Identity

Part Number
AES-IP-37
Vendor
Rambus, Inc.
Type
Silicon IP

Security

Crypto Algorithm
AES

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Rambus, Inc.
HQ: USA
Contact Rambus, Inc.
