AES

The AES core is a drop-in module that includes the following functions: • 128/192/256-bits key size • Automatic Roundkey calculat…

Overview

The AES core is a drop-in module that includes
the following functions:
• 128/192/256-bits key size
• Automatic Roundkey calculation
• Encryption or decryption functions are implemented in the core

Key features

  • Implements AES (Rijndael) to latest NIST FIPS PUB 197
  • Drop-in module for Xilinx Spartan-6, Virtex-6, Artix-7, Kintex-7, Virtex-7, Zynq FPGAs
  • Single clock
  • Supports 128/192/256-bits key size
  • Same core can be used for encryption and decryption
  • Automatic Roundkey generation inside the core
  • Update Key is allowed if an encryption or decryption process is running
  • ECB (Electronic Code Book) and CBC (Cipher Block Chaining) are supported
  • > 200Mbps @ 125MHz (AES-128)800
  • > 170Mbps @ 125MHz (AES-192)
  • > 150Mbps @ 125MHz (AES-256)
  • Full synthesizable RTL VHDL design (not delivered) for easy customization

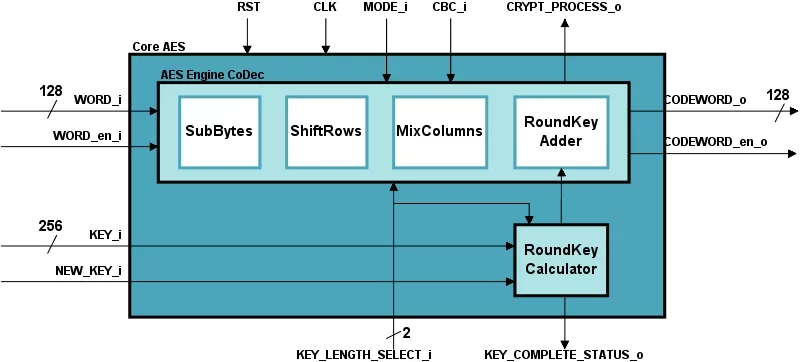

Block Diagram

Applications

  • AES-128 core may be used in applications related to MPEG-TS stream encryption, or any other encryption applications.

What’s Included?

  • Datasheet
  • Netlist for core generation
  • VHDL top file
  • VHDL source code: can be delivered as an option under NDA and other specific clauses

Specifications

Identity

Part Number
MVD_AES
Vendor
MVD Cores
Type
Silicon IP

Security

Crypto Algorithm
AES

Files

Note: some files may require an NDA depending on provider policy.

Provider

HQ: France
