AES Engine IP

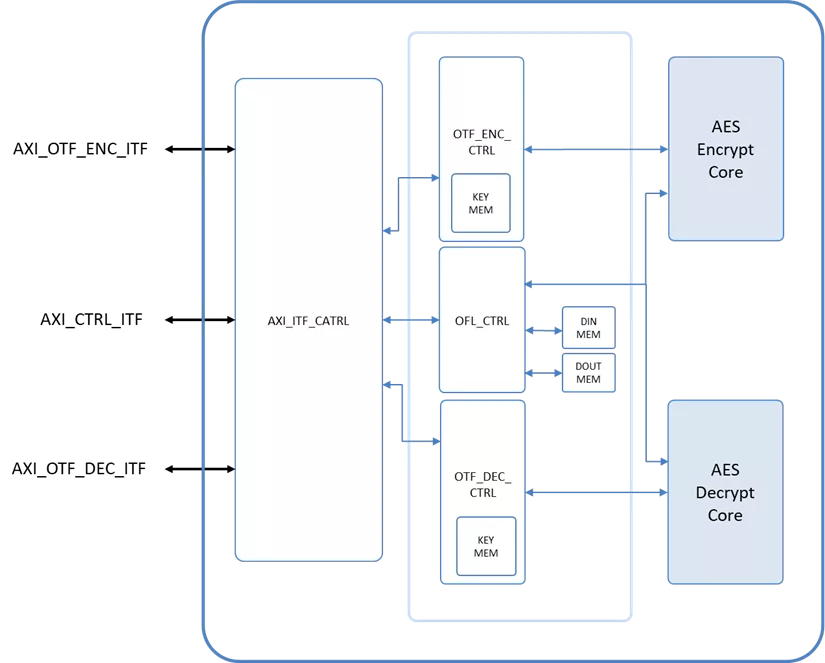

The AES engine IP is a high-performance cryptographic engine operates in AES NIST Federal information processing standard FIPS-197. It supports AES-ECB AES-XTS mode and 128/256 key-length both encryption/decryption. The core engine supports 128/256/512 data width operation. The encryption and decryption engines are-full duplex to provide high performance and support on-the-fly key update. YEESTOR's AES engine IP is delivered with complete development package for the ease of use in both FPGA and SoC design.

• Comply to NIST FIPS PUB 197
• Support ECB (Electronic Codebook) implementation per NIST SP800-38A
• Support AES-XTS implementation per NIST SP800-38E
• Drop-in module for ASIC & FPGA
• Signal Clock Domain
• Support Data Length 128/256/512-bits
• Support Key Length 128/256-bits (※192 bits option)
• Support automatic roundkey generation inside the core.
• Support on-the-fly key update while data processing
• Mode Support: ECB (Electronic Code Book), XTS (Tweakable Codebook mode)

• RTL code
• Verilog direct test verification environment
• Synthesis script and constraint for ASIC and FPGA
• Datasheet
• Integration guide
• Programming guide
• Register specification
• Training Course
