AES ECB/CBC/CTR Accelerators

The AES-IP-36 (EIP-36) is IP for accelerating the AES symmetric cipher algorithm (FIPS-197), supporting ECB, CBC and CTR modes up to 12.8 Gbps @ 1GHz. Designed for fast integration, low gate count and full transforms, the AES-IP-36 accelerator provides a reliable and cost-effective embedded IP solution that is easy to integrate into high speed crypto pipelines.

How the AES-IP-36 AES ECB/CBC/CTR Accelerators work

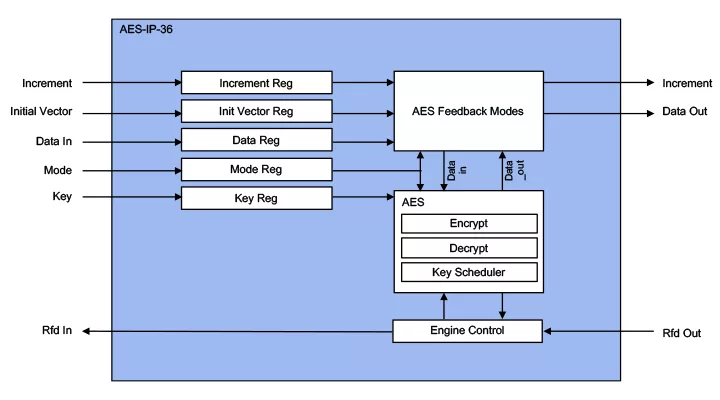

The AES-IP-36 is a family of the cryptographic library elements in the Rambus hardware IP library (formerly of Inside Secure). For example, the AES-IP-36 is the cipher core embedded in all PacketEngine-IP-97/196/197 protocol-aware security engines. The accelerators include I/O registers, encryption and decryption cores, and the logic for feedback modes and key scheduling.

Sustained performance for any object sizes ranges from 2.5 to 12.8 Gbps depending on the configuration and area. Gate count is between 23K and 52K gates depending on the configuration. Multiple AES-IP-36 cores can be cascaded.

Rambus also offers the AES-IP-39 that supports more AES modes and can be provided with counter measures including ones against side-channel attacks and fault injection attacks.

• Wide bus interface (128-bit data, 256-bit keys) or 32-bit register interface
• Key sizes: 128, 192 and 256 bits
• Includes key scheduling hardware
• Feedback modes: ECB, CBC, CTR, OFB (128 bit),
CFB (1, 8 and 128 bit)
• Fully synchronous design
• Low Speed, Medium Speed, High Speed versions
• Encrypt-only versions (aimed at Counter Mode) for
each speed version
• Alternatives:
  • AES-IP-32 AES ECB accelerators
  • AES-IP-36 AES ECB/CBC/CTR accelerators
  • AES-IP-37 AES Key Wrap accelerators
  • AES-IP-38 AES XTS/GCM accelerators
  • AES-IP-39 AES ECB/CBC/CTR/CCM/GCM accelerators

• Silicon-proven implementation
• Fast and easy to integrate into SoCs
• Flexible layered design
• Complete range of configurations
• World-class technical support
