Vendor: So-Logic Category: CPU

8051 Comaptible CPU Core

The so_ip_8051C256 is a soft core of a 8-bit CPU dedicated for operation with fast (on-chip) and slow (off-chip) memories.

Contact Provider Request Datasheet

Overview

The so_ip_8051C256 is a soft core of a 8-bit CPU dedicated for operation with fast (on-chip) and slow (off-chip) memories.

So_ip_8051C256 soft core is 100% binary compatible with the CPU from industry standard 8051 microcontroller. It executes all ASM51 instructions and has the same instruction set as the 8031.

The so_ip_8051C256 serves both software and hardware interrupts.
So_ip_8051C256 has an advanced architecture that enables it to be 4.51 times faster than the CPU from original 8051 microcontroller.

So_ip_8051C256 is delivered with fully automated testbench and a compete set of tests allowing easy package validation at each stage of SoC design flow.
The so_ip_8051C256 is a microcode-free design developed for reuse in FPGA implementations. The design is strictly synchronous with positive-edge clocking, no internal tri-states and a synchronous reset.

Key features

  • 100% software compatible with industry standard 8051
  • Advanced architecture enables to execute instructions on average 4.51 times faster compared to original 8051
  • 8 times faster multiplication
  • 8 times faster division
  • 4 times faster addition
  • 256 bytes of internal (on-chip) Data Memory
  • Up to 64K bytes of internal (on-chip) or external (off-chip) Program Memory
  • Up to 64K bytes of internal (on-chip) or external (off-chip) Data Memory
  • De-multiplexed Address/Data bus to allow easy connection to memory
  • Fully synthesizable synchronous design with positive edge clocking and no internal tri-states
  • Interrupt Controller with 2 priority levels and 2 external sources
  • Four 8-bit I/O Ports
  • Separate input and output lines

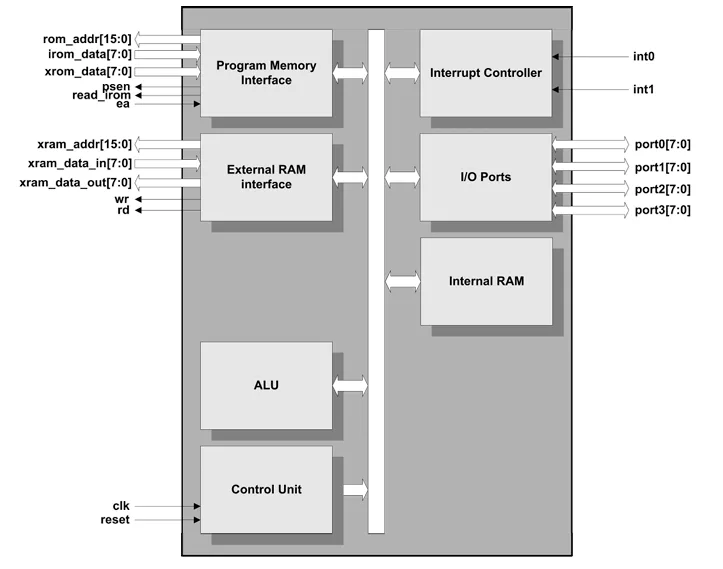

Block Diagram

so_ip_8051C256 block diagram

Applications

  • Embedded microcontroller systems
  • Data computation and transfer
  • Communication systems
  • Professional audio and video

What’s Included?

  • VHDL Source Code or netlis
  • Verification environment with regression suite
  • Technical documentation
  • Installation notes
  • User Manual
  • Datasheet
  • Instantiation templates
  • Reference Design
  • Technical Support
  • IP Core implementation support
  • Variable length maintenance
  • Delivery of IP Core updates, minor and major changes
  • Delivery of documentation updates
  • Telephone & email support

Specifications

Identity

Part Number
so_ip_8051C256
Vendor
So-Logic
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

So-Logic
HQ: Austria
SO-LOGIC electronic consulting is a engineering company providing services for the development of advanced digital system solutions. All our designers have a minimum of a lot of experience in programmable logic development and PCB design. We can take your new design ideas from the concept stage, through prototype design and checkout, to full scale manufacturing. Our emphasis has been on embedded applications that use Xilinx FPGAs and CPLDs. Some of the products designed or co-developed with clients include: Real-time speech recognition system; DSP replacement with FPGAs; Video graphic interface cards; Pattern recognition for image systems; High-speed communications links for different transmission media; Back planes; Optical measurement system; Digital Signal processing with System Generator and Matlab; Video and Audio Compression; HD-SDI, AES/EBU, Video walls with LEDs; PCI cards; USB, Firewire and Rocket IOs.
