8-bit Baseline JPEG Encoder with Optional Video Rate Control

The JPEG-E core is a standalone and high-performance 8-bit Baseline JPEG encoder for still image and video compression applications. Full compliance with the Baseline Sequential DCT mode of the ISO/IEC 10918-1 standard makes this IP core ideal for interoperable systems and devices. The JPEG-E is available for ASIC or AMD-Xilinx, Efinix, Intel, Lattice and Microchip FPGA and SoC based designs.

In addition to generating standalone Baseline JPEG streams, this encoder can also produce the (de-facto) standard video payload of many motion JPEG container formats. Furthermore, the optionally included video rate control block is a best fit for the bandwidth constrained applications.

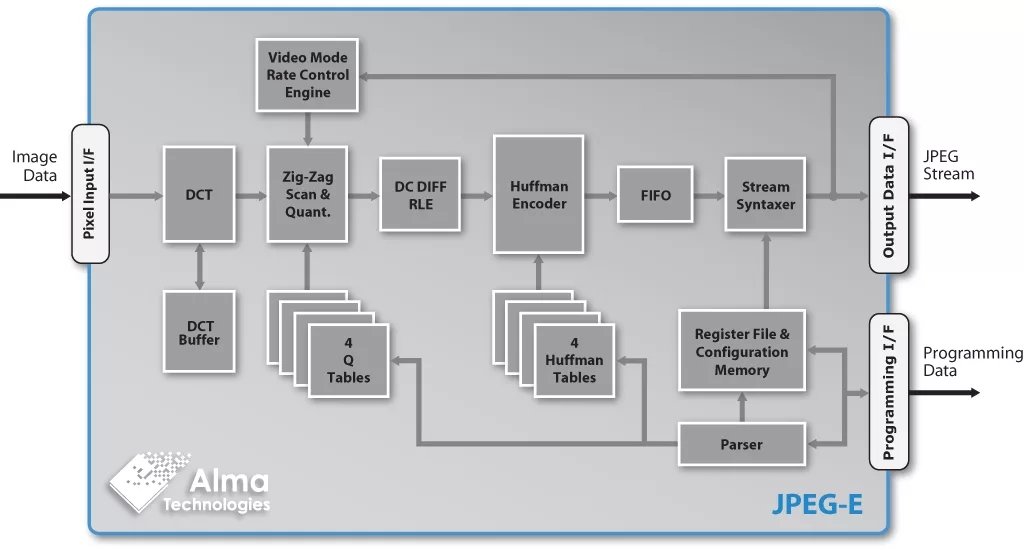

The core is designed with simple, fully flow-controllable and FIFO-like, streaming input and output interfaces. Being carefully designed, rigorously verified and silicon-proven, the JPEG-E is a reliable, easy-to-use and integrate IP providing a best value solution for your FPGA or ASIC design.

• Complete, Compliant and Standalone Operation
  • 8-bit Baseline JPEG encoder with full ISO/IEC 10918-1 compliance
  • Up to 64K x 64K image resolution
  • 1-4 image components
  • 1, 2 and 4 horizontal and vertical sampling factors support
  • Single- and multi-scan support
  • Programmable Quantization Tables (up to four)
  • Programmable Huffman Tables (two DC, two AC)
  • Programmable Restart Markers insertion
  • Complete and standalone Baseline JPEG stream output with user controllable marker inclusion
  • CPU-less operation
  • Single clock cycle per sample encoding throughput
• Extra Capabilities
  • Programmable Quality Factor (1 to 100) for easy Quantization Tables scaling
  • Motion JPEG payload encoding
  • Optional block-based maximum output size control with independent Luminance and Chrominance bit thresholds
  • Optional high-quality and accurate video rate control
    • Automatic Quality Factor adjustment per frame
    • Programmable nominal compressed frame size
    • Programmable bandwidth shaping output buffer size
• Ease of Integration
  • Simple, microcontroller like, programming interface
  • High-speed, flow controllable, streaming I/O data interfaces
    • Simple and FIFO like
    • Avalon-ST compliant (ready latency 0)
    • AXI4-Stream compliant
• Trouble-Free Technology Map and Implementation
  • Fully portable, self-contained RTL source code
  • Strictly positive edge triggered design
  • D-type only Flip-Flops
  • Fully synchronous operation
  • No special timing constraints required
    • No false paths
    • No multi-cycle paths

• Clear-text RTL sources for ASIC designs, or pre-synthesized and verified Netlist for FPGA and SoC devices
• Release Notes, Design Specification and Integration Manual documents
• Bit Accurate Model (BAM) and test vector generation binaries, including sample scripts
• Pre-compiled RTL simulation model and gate-level simulation netlist for the FPGA Netlist license
• Self-checking testbench environment sources, including sample BAM generated test cases
• Simulation and sample Synthesis (for ASICs) or Place & Route (for FPGAs) scripts
