65nm 8-ch 10bit 1MSPS SAR ADC
The L6GAD10B001M is an 8-channel, 10-bit analog-to-digital converter (ADC), which consists of a successive approximation register…
Overview
The L6GAD10B001M is an 8-channel, 10-bit analog-to-digital converter (ADC), which consists of a successive approximation register(SAR), a capacitor-based ADC, and an inherent sample-and-hold circuit.
The L6GAD10B001M, operating with analog power supply (AVDD) ranging from 2.2V to 3.6V, consumes maximum 700uA current. The ADC features the sampling rate of 1MSPS over industrial temperature range (-40℃ to +85℃) and occupies the core cell area of 0.09mm^2.
The L6GAD10B001M, operating with analog power supply (AVDD) ranging from 2.2V to 3.6V, consumes maximum 700uA current. The ADC features the sampling rate of 1MSPS over industrial temperature range (-40℃ to +85℃) and occupies the core cell area of 0.09mm^2.
Key features
- 10-bit resolution
- Maximum 1MHz conversion rate
- 2.2V to 3.6V analog power supply
- 1.08V to 1.32V digital power supply
- 8-channel single-ended inputs
- Analog input range : 0V to AVDD
- Current consumption : 700uA (typ)
- DNL / INL : ±0.5 /±1.0 LSB
- Power down current : < 1uA
Block Diagram

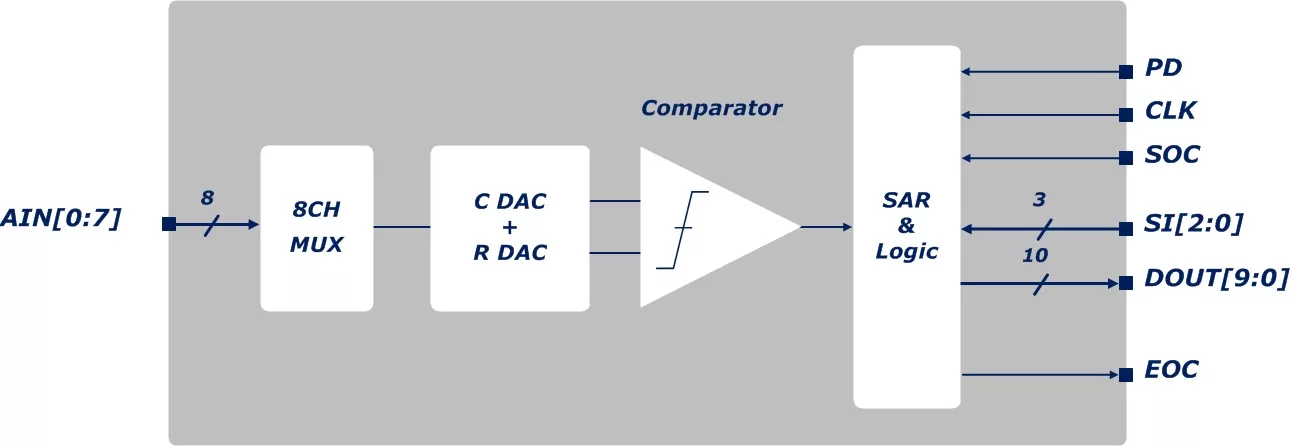

L6GAD10B001M block diagram
Benefits
- Low power
- Low area
- Wide power-supply range
- High performance
Applications
- Data acquisition systems
- Battery-powerd systems
- Wireless sensor networks
- Pressure sensors
What’s Included?
- Datasheet, Verilog DB, GDS, CDL, Phantom cell, test spec, sample
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 65nm | 6LPe | — |
Specifications
Identity
Part Number
L6GAD10B001M
Vendor
LeoLSI
Type
Silicon IP
Analog
Resolution bits
10 Bit
Provider
HQ:
Korea
