64G High-speed SerDes

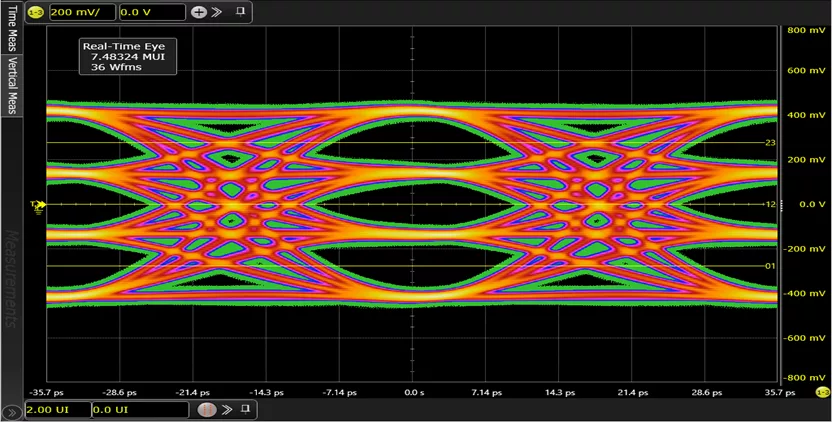

The 64G SerDes PHY is a configurable PHY capable of supporting speeds up to 64Gbps within a single lane.

Contact Provider Request Datasheet

Overview

The 64G SerDes PHY is a highly configurable PHY capable of supporting speeds up to 64Gbps within a single lane. The PHY has been configured to support 64G PAM-4 and NRZ specifically, but the PHY itself can be configured to support a wide range of HS SerDes protocols through changes to the PCS layer and register settings.

The hard-macro PHY is well-architected for IEEE and OIF protocols, with ESD structure and BIST function accommodated. This IP powers high-speed interconnectivity between chips, optics, and backplanes with the built-in low-jitter LC PLL to optimize the signal integrity. The Innosilicon 64G Long Reach SerDes solution meets the functionality, power, performance and area requirements of a variety of network applications.

Key features

  • ​​​​​​Fully compliant with the following standards:
  • IEEE 802.3 and OIF
  • CEI-64G+ LR PAM-4
  • CEI-25G+ LR/MR NRZ
  • 400GAUI-8 LR/MR
  • CEI11G-LR
  • 64Gbps/56Gbps serial data speed, support IEEE 802.3 and OIF standards electrical specifications
  • Support 28-32G VSR/SR/MR/LR NRZ and 64G PAM-4
  • Support up to -36dB+ insertion loss @14GHz
  • ADC/DSP-based receiver
    • Auto-adaptive Equalization
    • 1-tap Decision Feedback Filter
    • MM Clock Data Recovery
  • Reference clock: 100MHz/156.25MHz from external or through on-chip
  • Embedded high precision low jitter LC PLL
  • 85-ohm differential on-chip terminated drivers and receivers with automatic impedance calibration
  • Multiple built-in self-test modes and test pattern generation
  • Near-end serial loopback for testability
  • Proprietary low cap ESD structures
  • On-chip PRBS generation and verification controlled from external terminal
  • Well-tuned IO and PKG model to achieve good SI and performance

Block Diagram

64G SerDes block diagram

Benefits

  • Offers leading performance, power, and area per terabit
  • Optional PI/SI and thermal co-design service
  • Full support from IP delivery to production

What’s Included?

  • Verilog Sim Behavioral simulation model for the PHY
  • Encrypted IO spice netlist for SI evaluation
  • Integration Guidelines
  • Test Guidelines
  • GDSII Layout and layer map for foundry merge
  • Place and Route LIB and LEF views for the AFE
  • LVS and DRC verification reports

Specifications

Identity

Part Number
64G SerDes
Vendor
Innosilicon Technology Ltd
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Innosilicon Technology Ltd
