Current Steering 6-bit RF DAC on TSMC, 28nm

The ODT-DAC-6B1G-28HPCPT is a highperformance current steering 6-bit DAC that operates at an update rate of up to 1 GSPS.

Contact Provider Request Datasheet
6 Bit TSMC 28nm View all specifications

Overview

The ODT-DAC-6B1G-28HPCPT is a highperformance current steering 6-bit DAC that operates at an update rate of up to 1 GSPS. The DAC uses a proprietary architecture that reduces harmonic and intermodulation distortions at high output frequency and amplitudes.

The DAC is powered by a 1.8V ,0.9V analog supply and a 0.9V digital supply.

Key features

  • 6-bit resolution
  • 1GSPS update rate.
  • Differential 5mA current (sink) output
  • Functional from -40°C to 125°C

Block Diagram

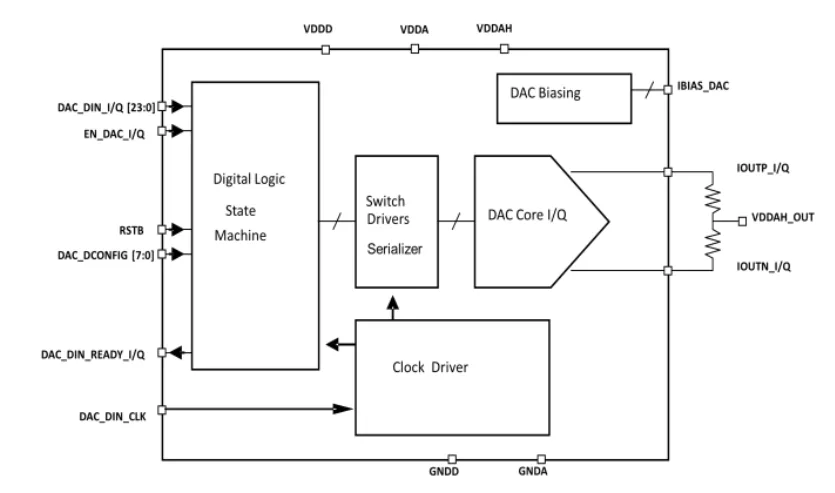

ODT-DAC-6B1G-28HPCT block diagram

Applications

  • General purpose software defined radio
  • DOCSIS transmitter
  • Cellular base station
  • Broadband communications
  • Wideband satellite transmitter

What’s Included?

  • Datasheet
  • Hard GDS Database (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model (as appropriate)
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm —

Specifications

Identity

Part Number
ODT-DAC-6B1G-28HPCT
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Analog

Resolution bits
6 Bit

Provider

Contact Omni Design Technologies, Inc.

Learn more about DAC IP core
